Fig. 6: Electric field driven characteristics and self-healing ability of GSCC.
From: Wide temperature range adaptable electric field driven binder for advanced lithium-sulfur batteries

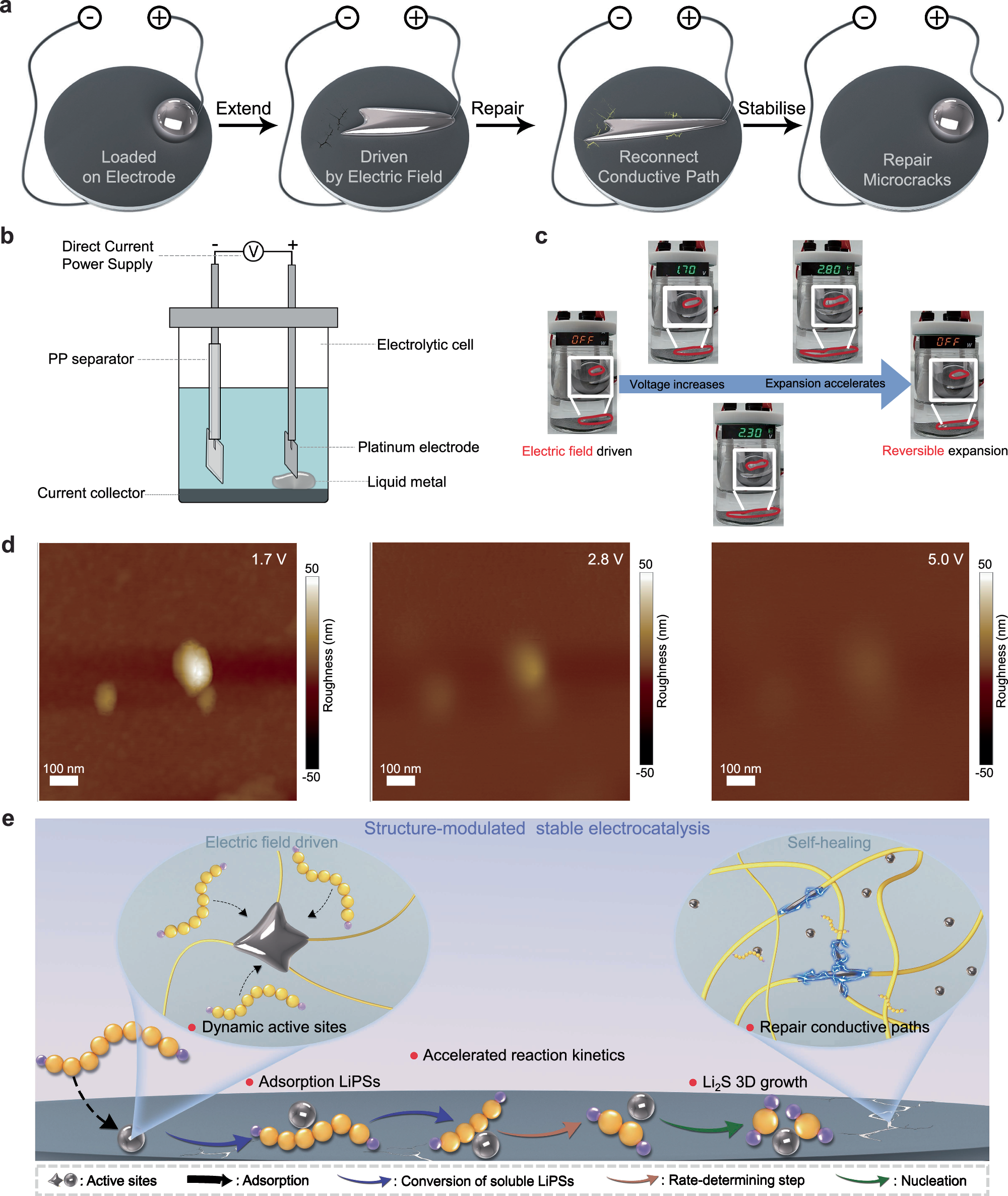

a Schematic illustration of the electrode stabilization by the high mechanical strength of polymer network and the electric field driven properties of LM in GSCC binder. b Schematic diagram of electric field driven characteristic visualization device (c) Electric field driven characteristic visualization test in battery-like operating conditions (The inset figures show the direct current power supply connected to the device). d AFM of the LM at different voltages. e Schematic illustration of the stable electrocatalytic mechanism.
