Fig. 2: Hierarchical cortical SFC variability distribution.

From: Gene transcription, neurotransmitter, and neurocognition signatures of brain structural-functional coupling variability

Fig. 2: Hierarchical cortical SFC variability distribution.

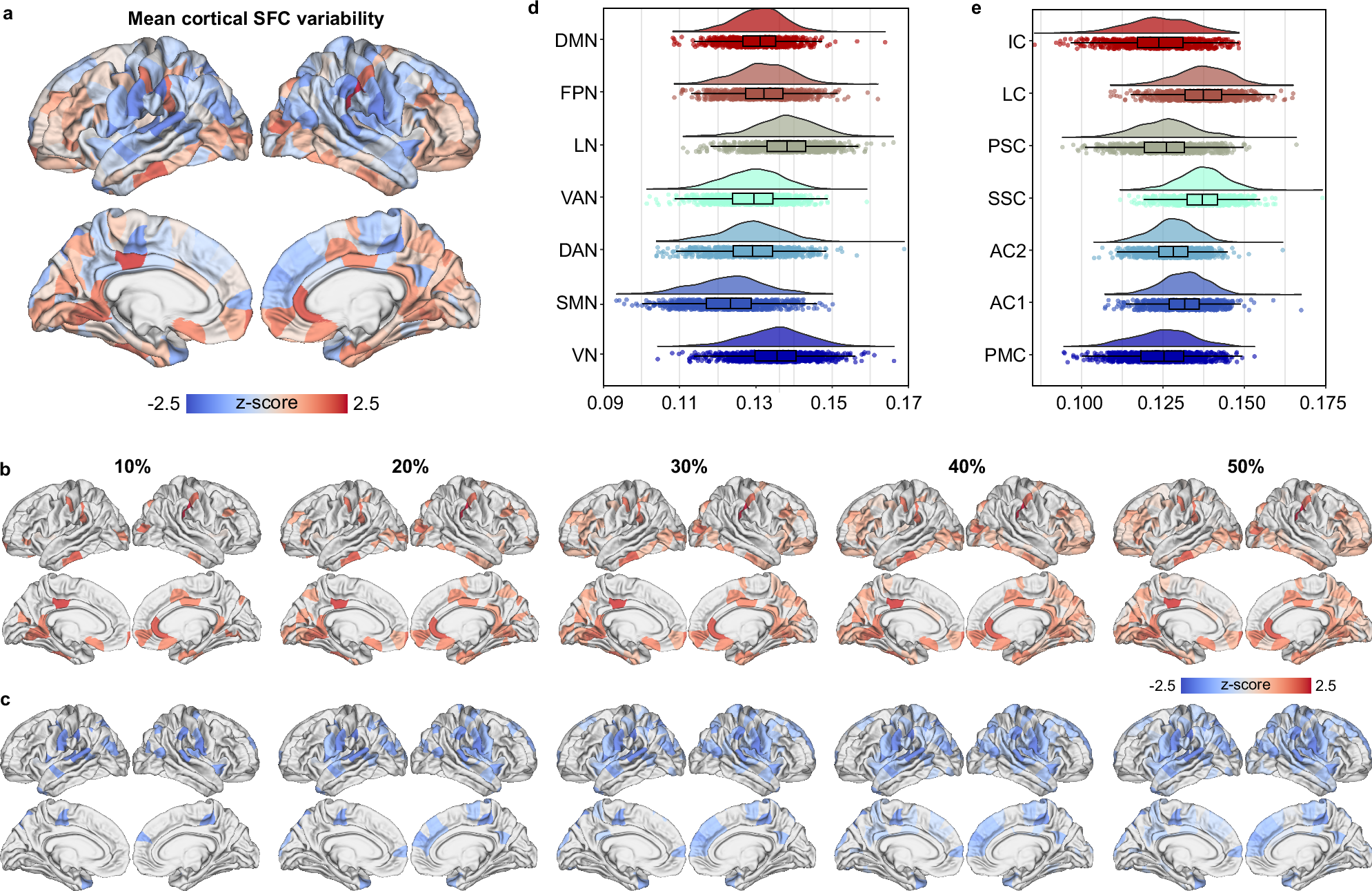

a Topographic distribution of brain SFC variability based on the D–K atlas. b Hierarchical distributions of brain SFC variability with the 10% to 50% largest fuzzy entropy. c Hierarchical distributions with the 10% to 50% smallest fuzzy entropy. d The distribution of SFC variability over regions grouped into YEO 7 functional subnetworks. VAN-ventral attention network, LN-limbic network, DAN-dorsal attention network, FPN-frontoparietal network, SMN-somatomotor network, DMN-default mode network, VN-visual network. e The distribution of SFC variability over regions grouped into 7 von Economo cytoarchitectonic classes. PMC-primary motor class, AC1-association class 1, AC2-association class 2, SSC-secondary sensory class, PSC-primary sensory class, LC-limbic class, IC-insula class. Boxplots represent the median and upper/lower quartile with whiskers extending to the most extreme data point within 1.5 interquartile ranges above/below the quartiles. Dots show data from n  =  991 participants. Source data are provided as a Source Data file.
