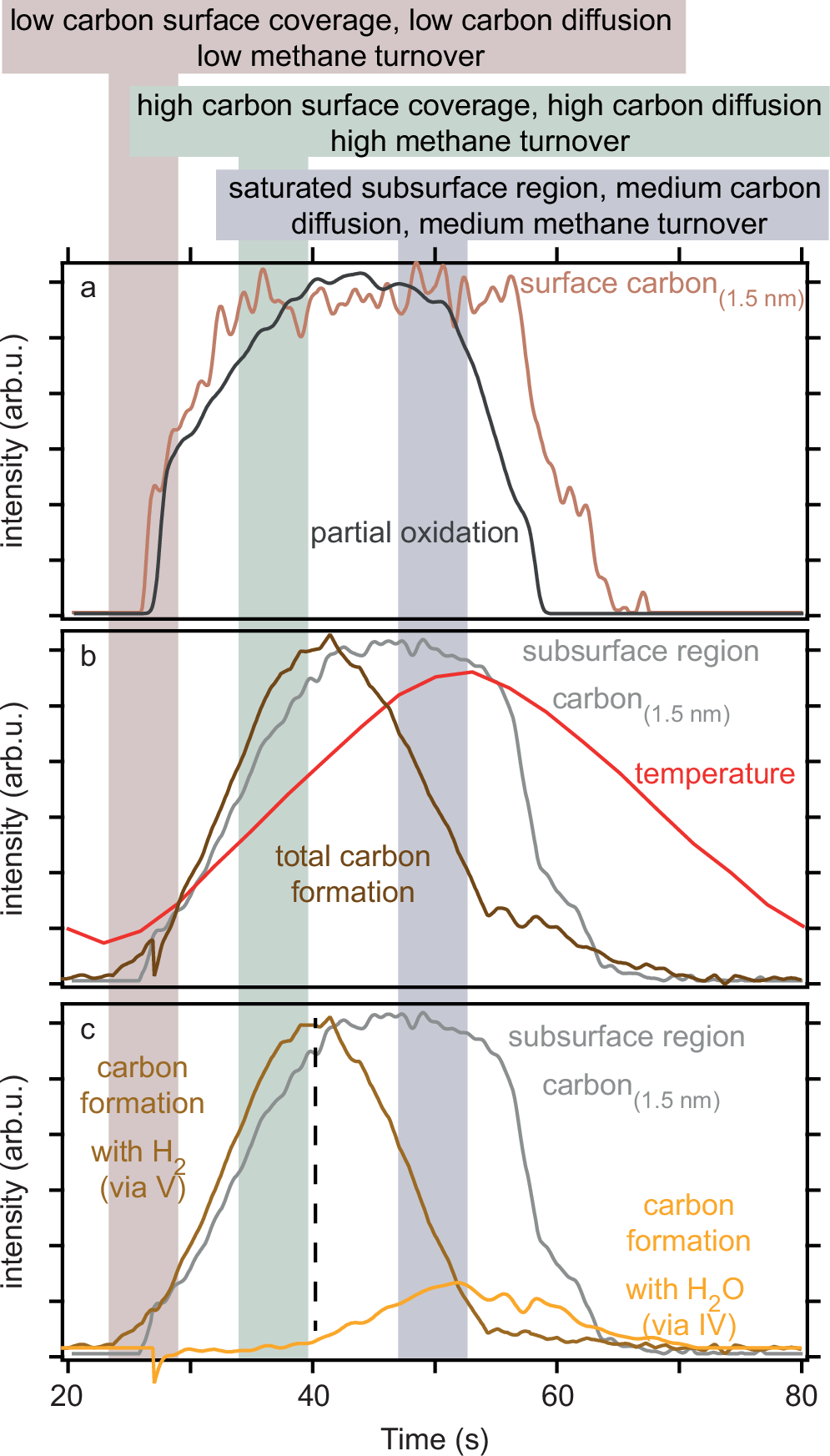

Fig. 5: Comparison of surface species coverages with catalytic activity and selectivity.

Comparison of surface and subsurface carbon evolutions together with reaction pathway selectivities (a−c). The evolutions are taken from Fig. 2 for the surface and subsurface C-components and from Fig. 4 for the selectivity.
