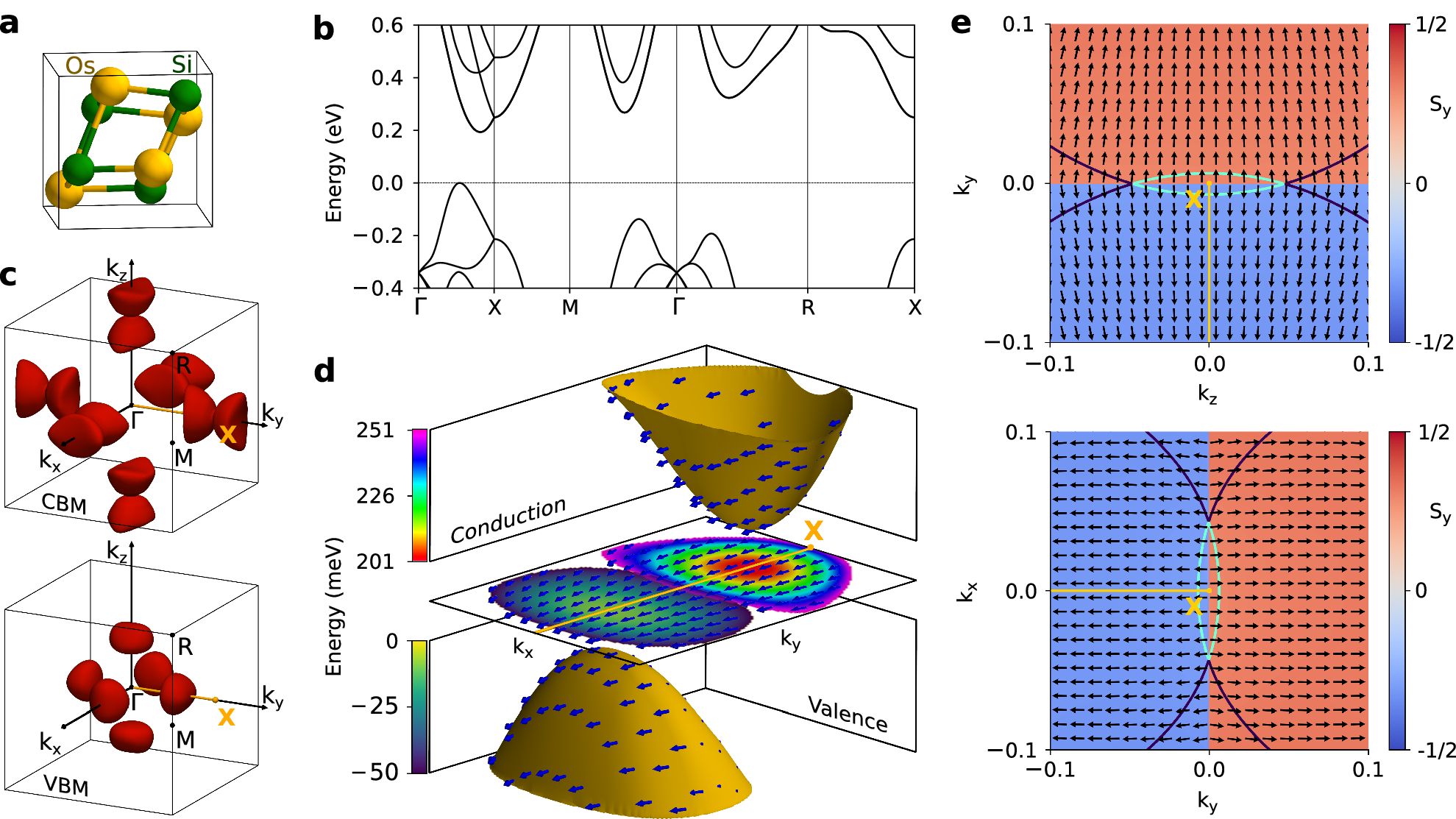

Fig. 4: Chiral OsSi as an example of SP-PST of type II.
From: Universal symmetry-protected persistent spin textures in noncentrosymmetric crystals
