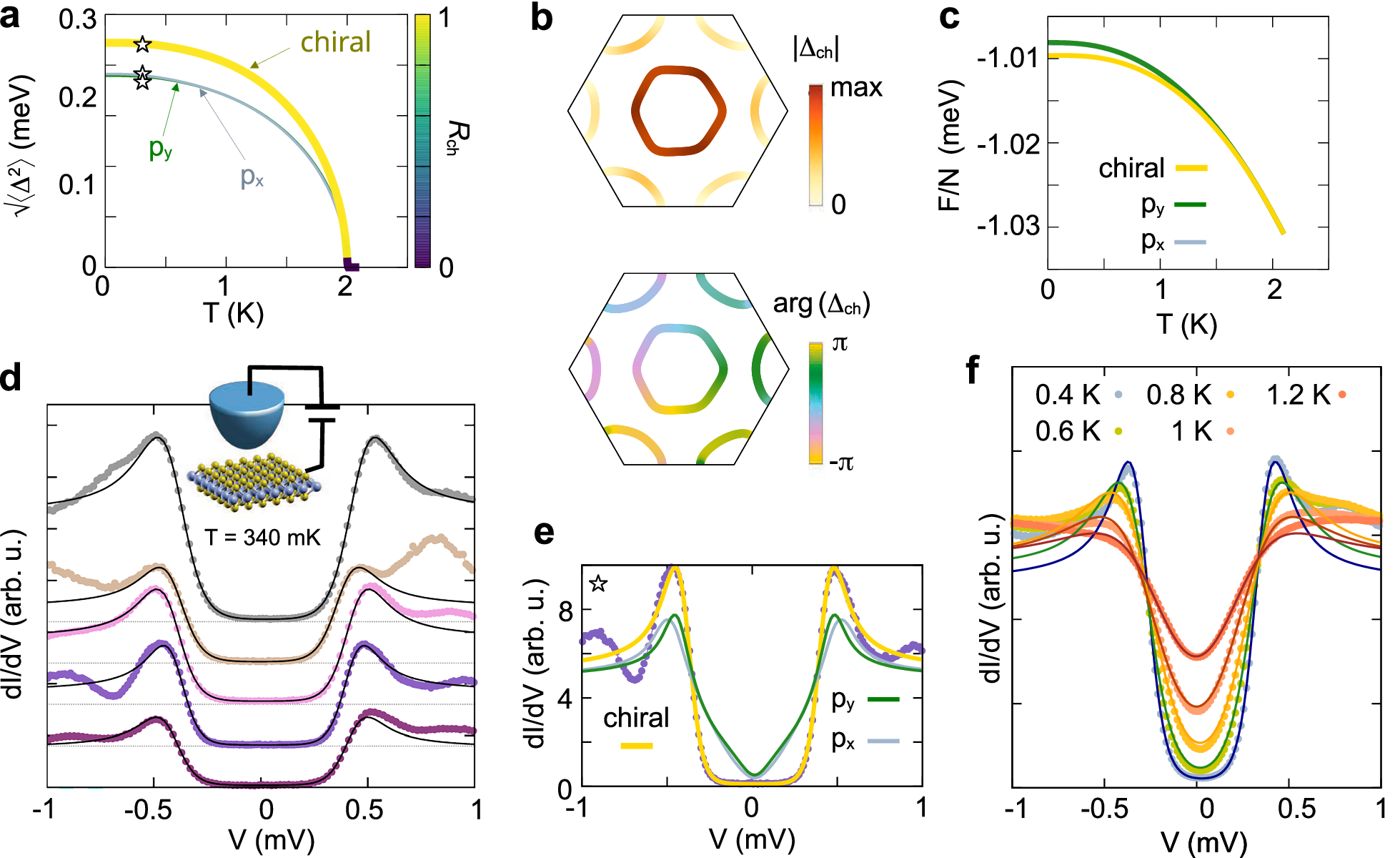

Fig. 4: Chiral ground state and comparison with spectroscopic measurements.
From: Friedel oscillations and chiral superconductivity in monolayer NbSe2
