Fig. 2: Substrate scope of Fe-electrocatalyzed deoxygenative Giese reaction: reactivity across styrene and acrylate derivatives. | Nature Communications

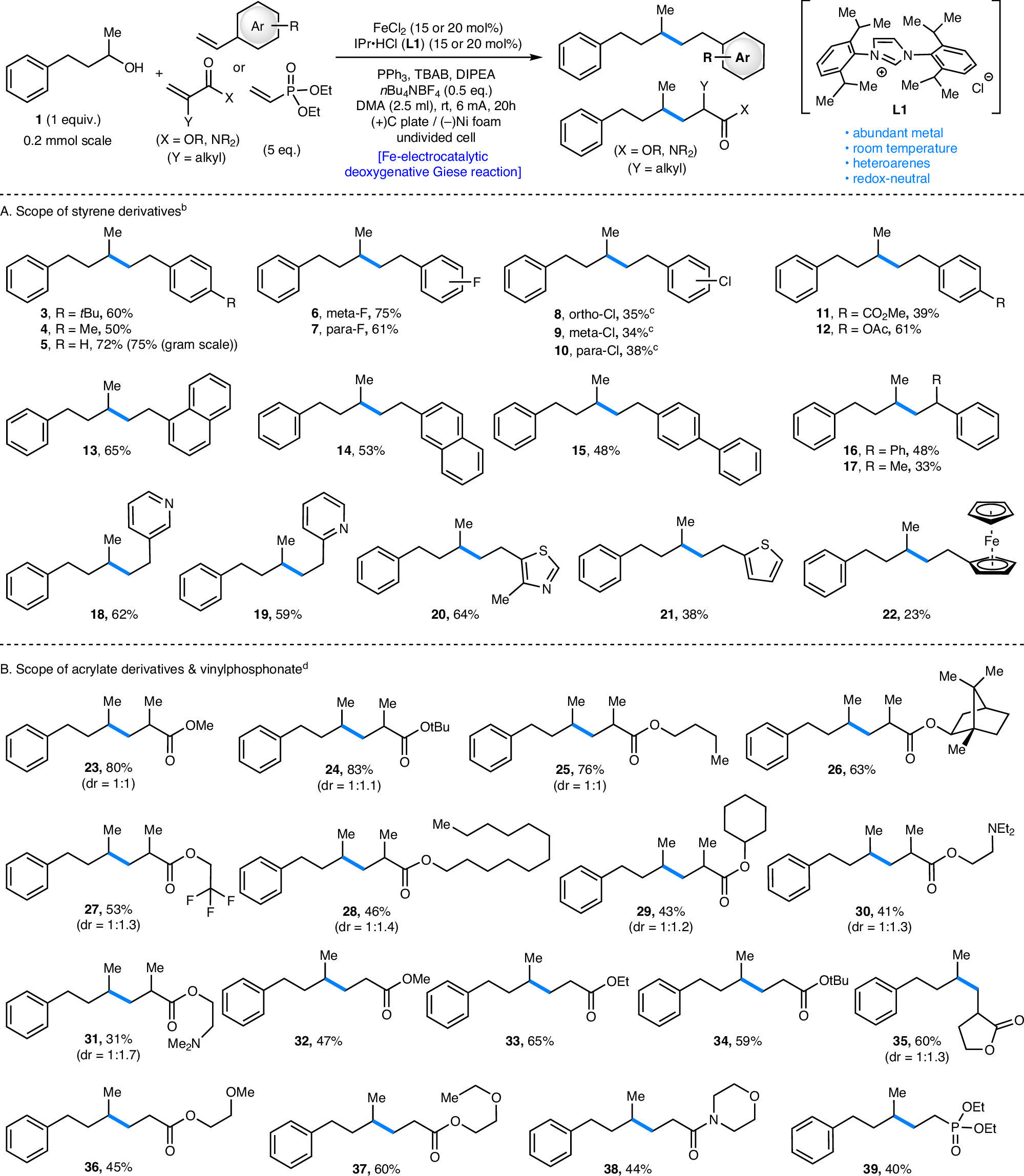

Fig. 2: Substrate scope of Fe-electrocatalyzed deoxygenative Giese reaction: reactivity across styrene and acrylate derivatives.

From: Fe-electrocatalytic deoxygenative Giese reaction

Fig. 2

A Scope of styrene derivatives. B Scope of acrylate derivatives. aIsolated yields. bFeCl2 (15 mol%), IPr·HCl (15 mol%), PPh3 (4 eq.), TBAB (4 eq.), and DIPEA (4 eq.) were used. cTBAI (4 eq.) was used instead of TBAB. dFeCl2 (20 mol%), IPr·HCl (20 mol%), PPh3 (6 eq.), TBAB (4 eq.), and DIPEA (2 eq.) were used.
