Fig. 2: Activity and stability of PTI-LiCa in photocatalytic overall water splitting.

From: Spontaneous dissociation of excitons in polymeric photocatalysts for overall water splitting

Fig. 2: Activity and stability of PTI-LiCa in photocatalytic overall water splitting.

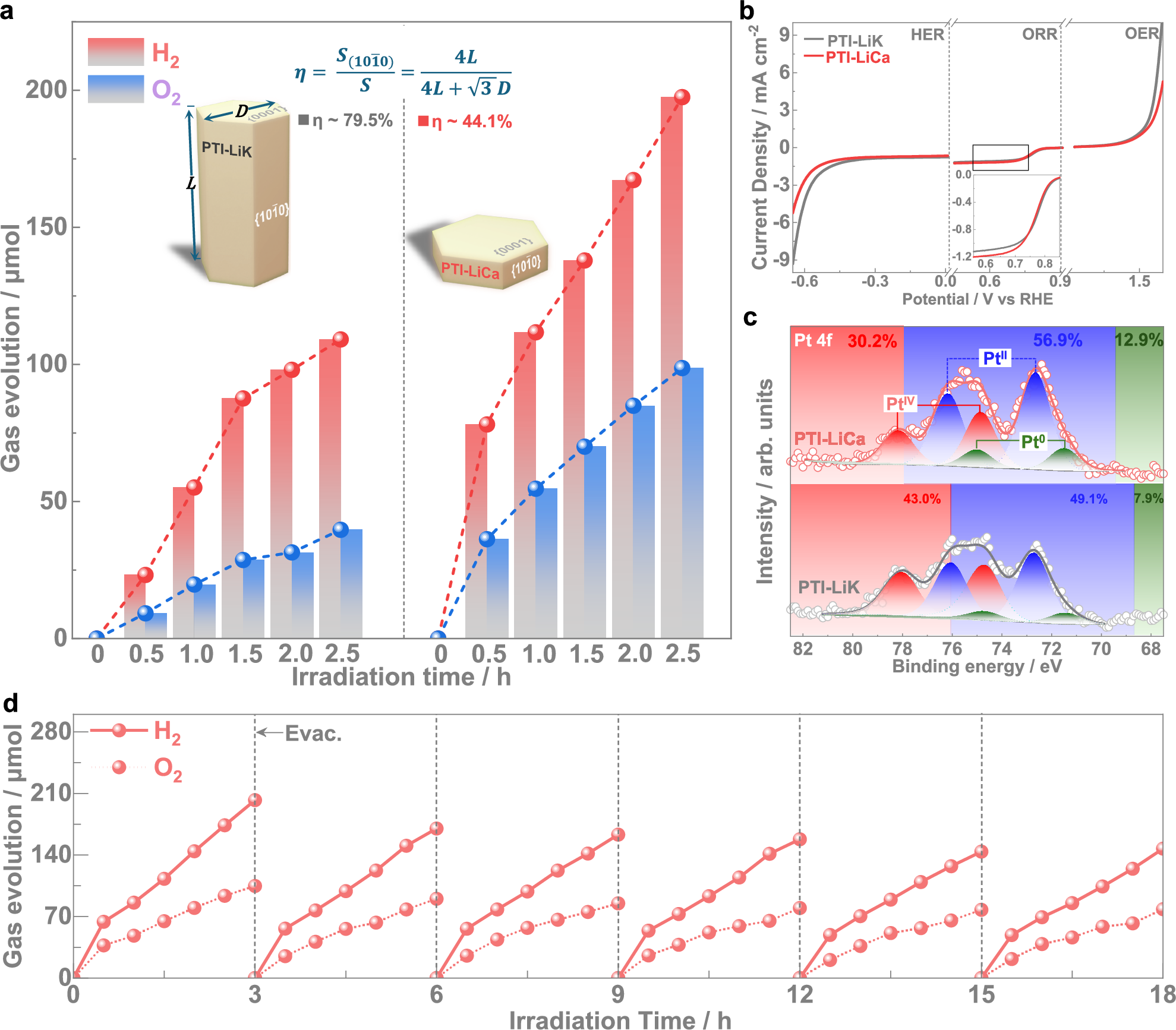

a The quantitative analysis of the exposure ratios of the (10\(\bar{1}\)0) facets of PTI-LiK and PTI-LiCa particles. And the comparison of the OWS performance of PTI-LiK and PTI-LiCa under optimized conditions, with Xe-lamp irradiation. b The HER, OER and ORR performances of PTI-LiK and PTI-LiCa as electrocatalysts. c Comparison of the Pt 4 f XPS high-resolution spectra of the PTI-LiK and PTI-LiCa deposited with cocatalysts collected after the OWS tests. d Photocatalytic stability test of PTI-LiCa. (All photocatalytic water splitting tests were taken in an automatic reaction system: Perfectlight Sci&Tech, Labsolar-6A). Source data are provided as a Source Data file.
