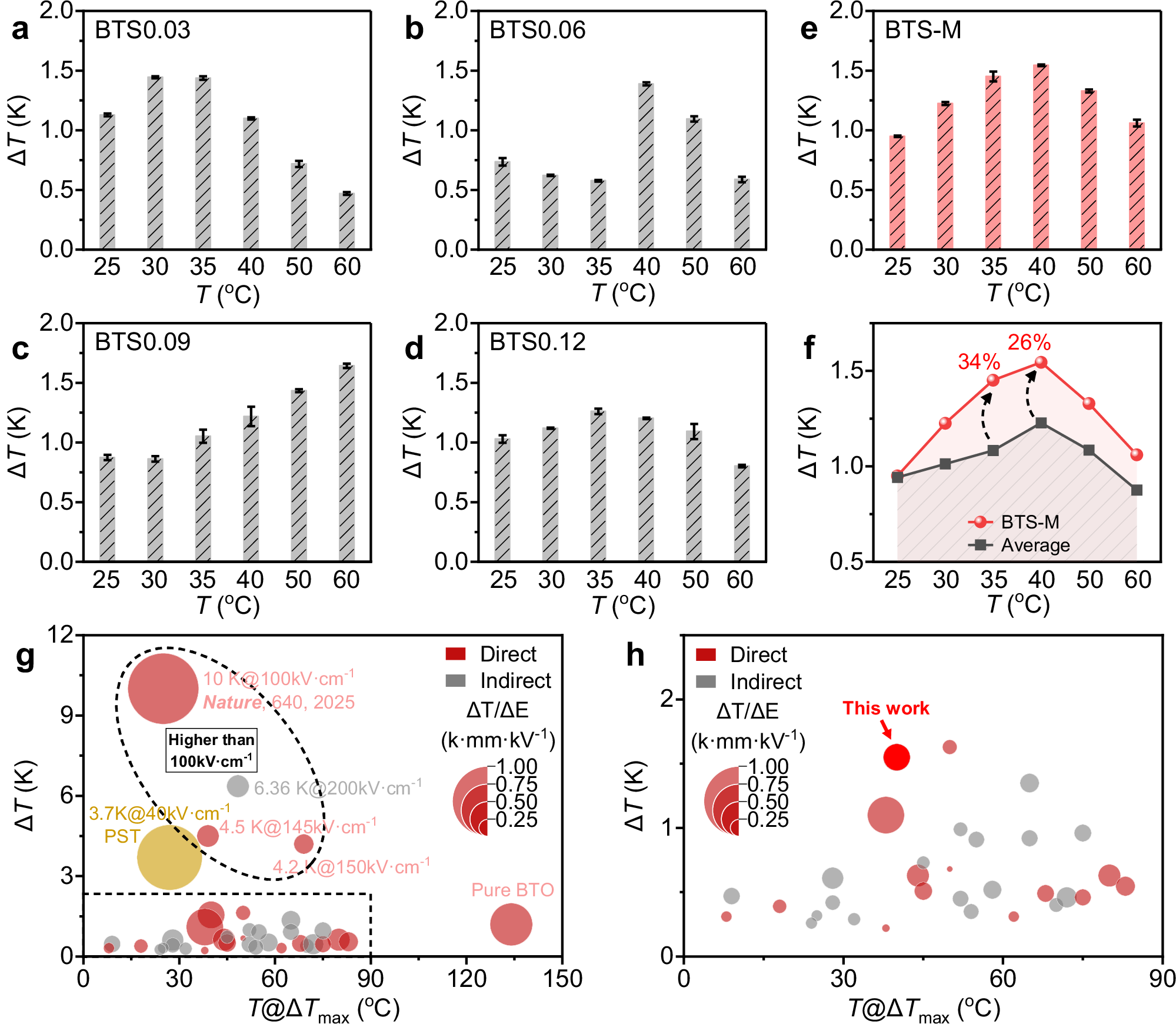

Fig. 2: EC performance of BTS-M.
From: Multiscale-engineered ferroelectric ceramics exhibiting superior electrocaloric performance
a–e Direct EC results of individual and BTS-M samples measured under 40 kV·cm−1 electric field. f Comparison of EC performance between BTS-M and the average of individual samples. g The comparison of EC performance between the reported materials and BTS-M based on Table S1. The region marked by the dashed box is enlarged in (h).
