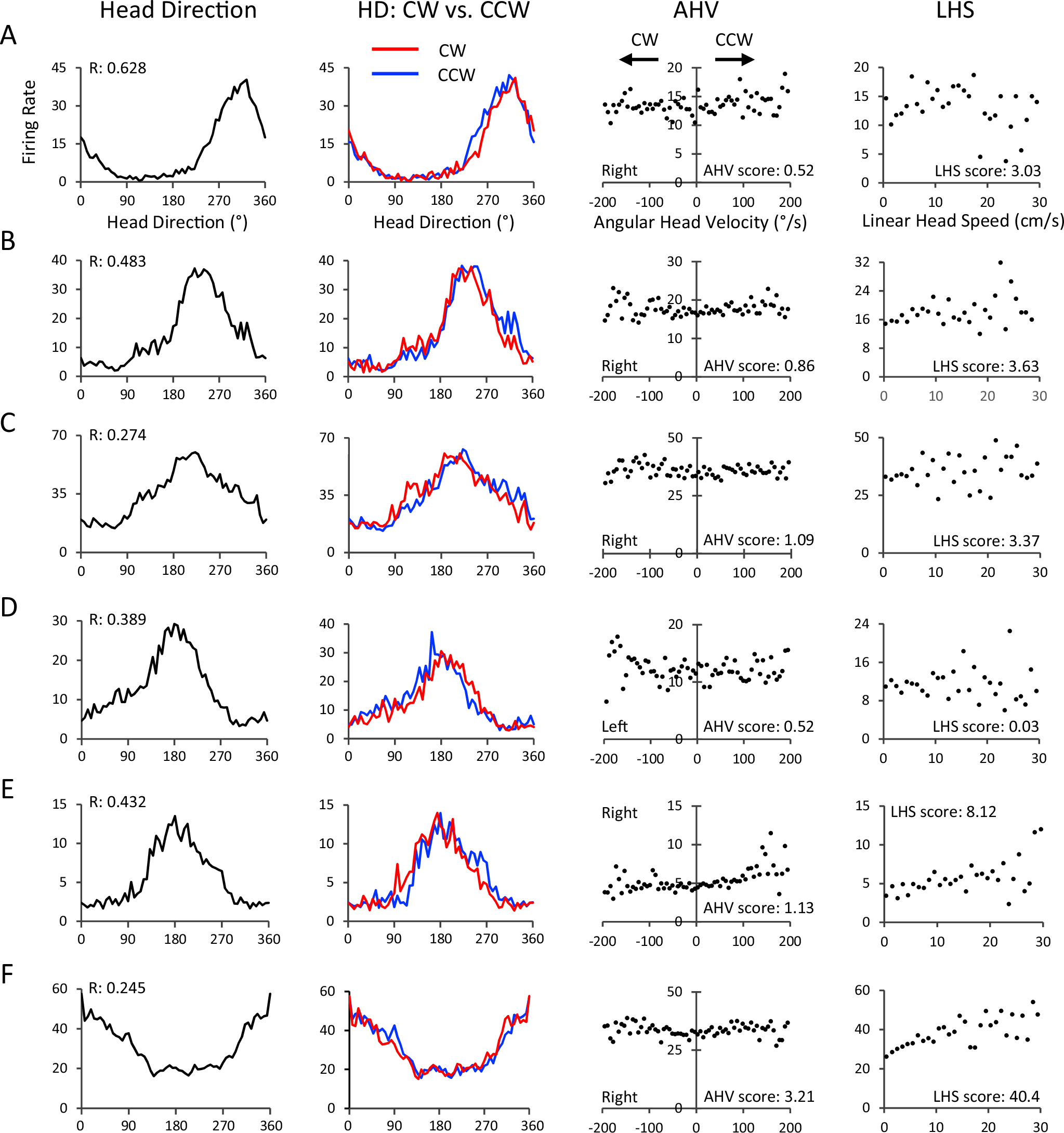

Fig. 2: LMN AHV-independent cells.
From: The head-direction signal is generated from two types of head direction cells in brainstem nuclei
A–F Six LMN HD cells are depicted that were not angular head velocity (AHV) sensitive. Each row is one cell. Starting at the left, the first column shows the HD x firing rate tuning curve with Rayleigh value (R). The second column depicts the HD tuning curve for the same cell but is divided into two functions based on whether the animal was turning CW (red) or CCW (blue). The third column shows the AHV tuning curve. The fourth column displays the linear head speed (LHS) tuning curve. All axes are labelled as shown in the top row. The hemisphere the cell was recorded from is indicated on the left in each AHV plot. Abbreviations are as shown in legend for Fig. 1. Source data are provided as a Source Data file.
