Fig. 3 | Nature Communications

Fig. 3

From: 1,1-polymerization of acetylene

Fig. 3

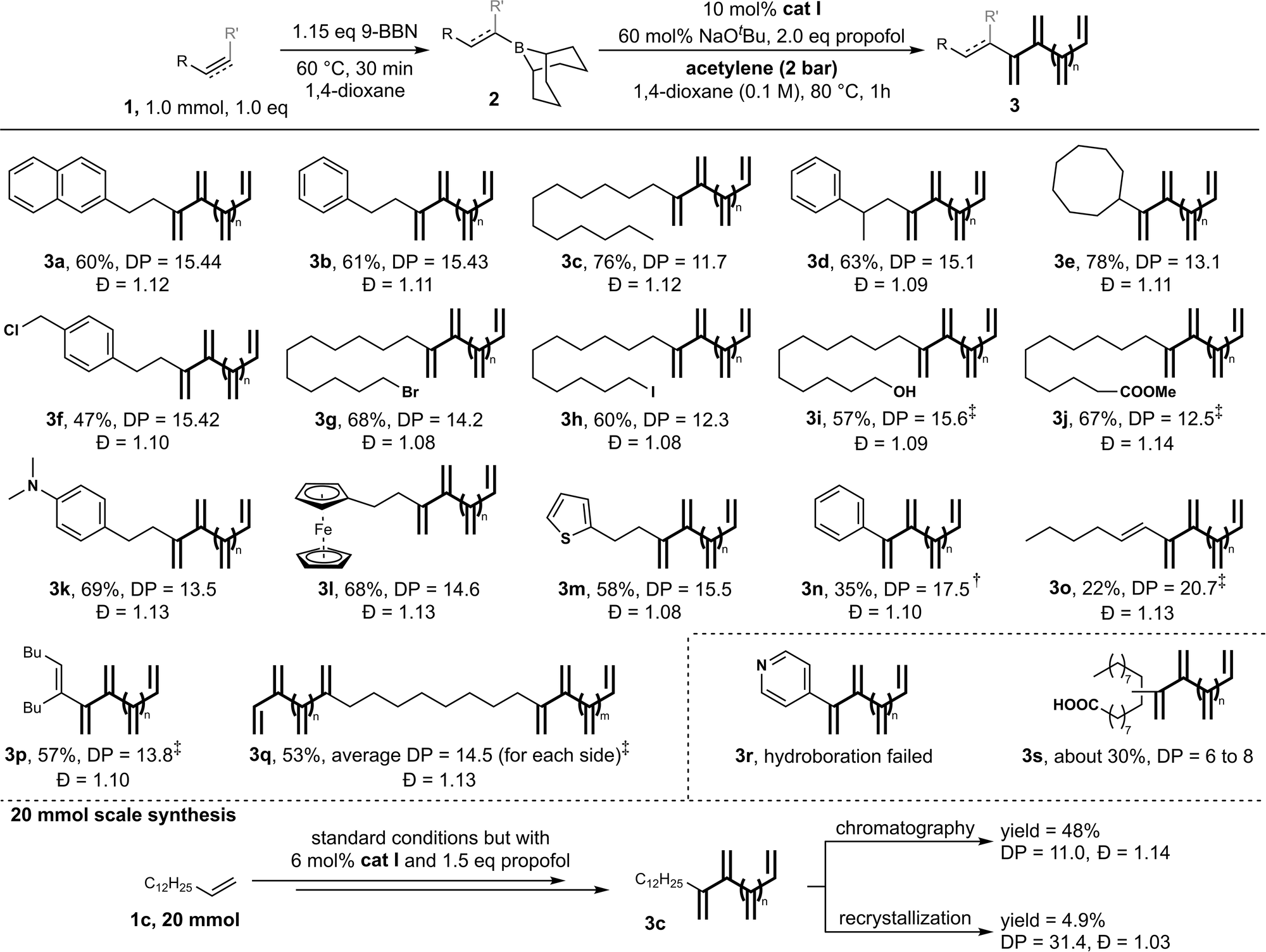

Synthesis of short-chain 1,1-PAs. †Ph-BBN was synthesized from PhMgBr and Cl-BBN and was isolated before use. ‡Hydroboration conditions: non-standard stoichiometry/temperature/handling. See SI. Isolated yields corrected for residual impurities/solvent.
