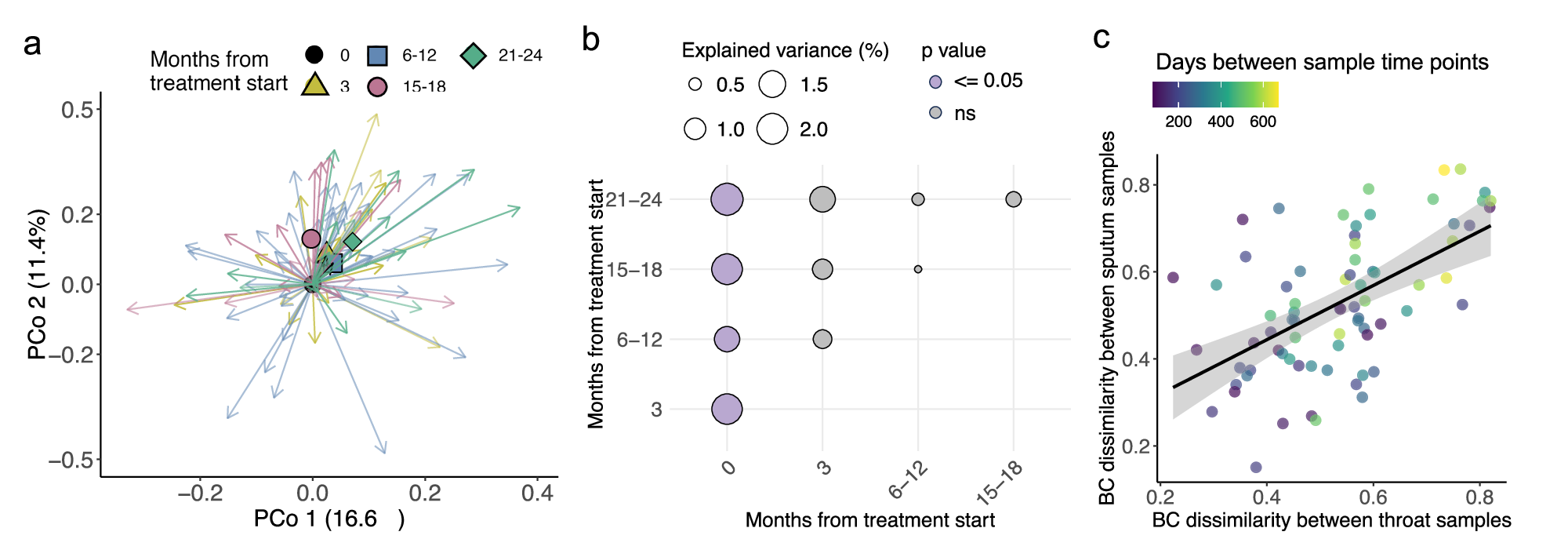

Fig. 4: Changes in throat composition are subtle and mirror to a certain extent changes in sputum microbiome.
