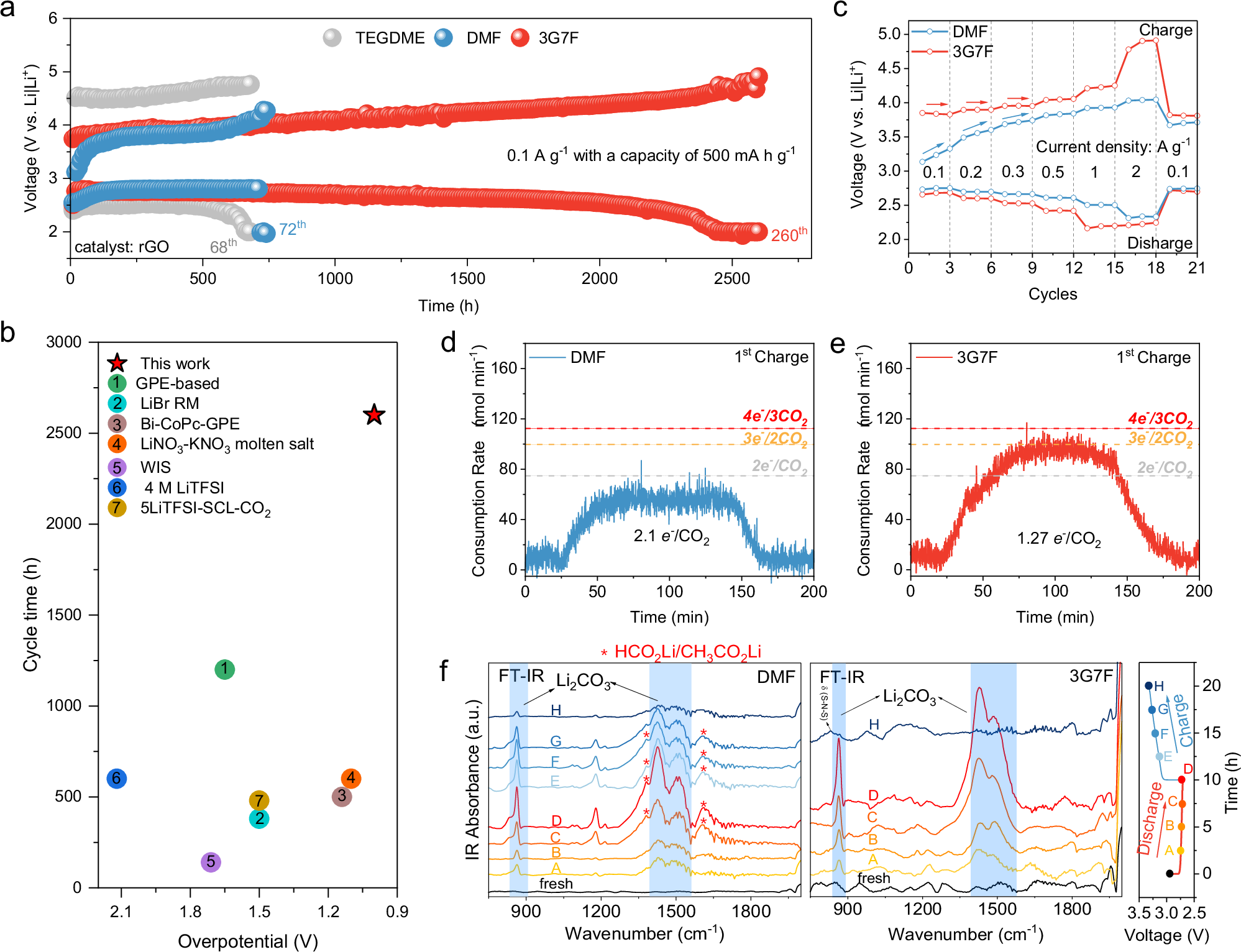

Fig. 5: Enhanced electrochemical stability via the decoupled electrolyte.
From: Boosting a practical lithium carbon dioxide battery through a decoupled electrolyte

a Long-term cycling performance of the bare TEGDME, bare DMF, and 3G7F cells at 0.1 A g–1 with a cut-off specific capacity of 500 mA h g−1. b Comparison of overpotential and cycle life with previously reported electrolytes optimized for Li-CO2 batteries with a metal-free catalyst. The detailed values are provided in Supplementary Table 5. c Rate performance of the bare DMF and 3G7F cells at various current densities from 0.1 to 2 A g−1. In-situ DEMS results for the d bare DMF and e 3G7F cells during the first charge, tested at 200 µA within a capacity of 400 µAh. f Ex-situ FTIR spectra observed on positive electrode surfaces during the first cycle at 0.1 A g−1 and collected at different discharge/charge states. The discharge products (Li2CO3) are highlighted with blue shading. The side products (HCO2Li/CH3CO2Li) are marked with red * symbol.
