Fig. 4: Catalytic ammoxidation of FAL. | Nature Communications

Fig. 4: Catalytic ammoxidation of FAL.

From: Low-coordinated Co-Ru dual-atom enables ambient ammoxidation via unlocking competitive adsorption limitations

Fig. 4

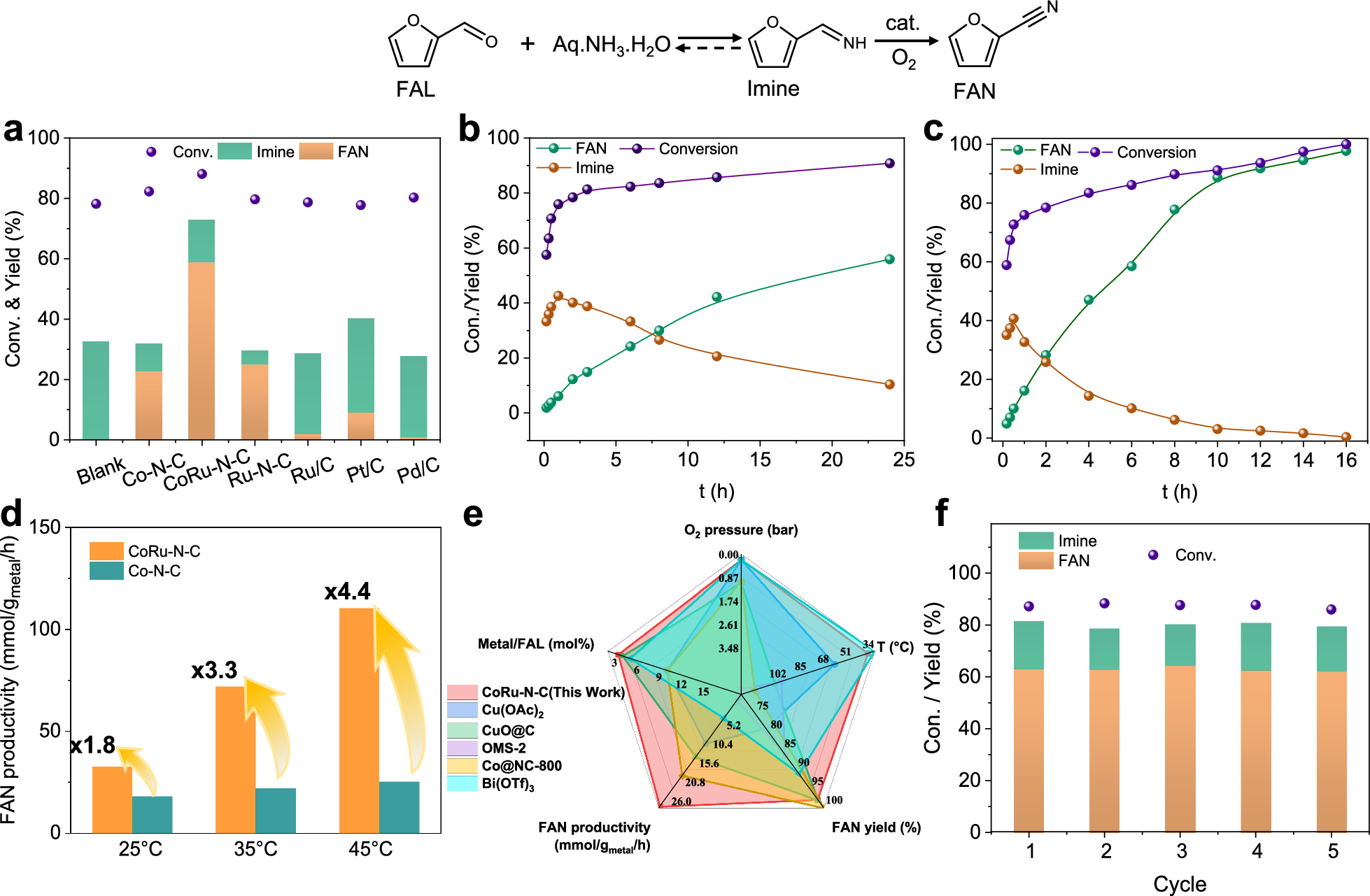

a Catalyst screen for the FAL ammoxidation. Time profiles of FAL ammoxidation over b Co-N-C and c CoRu-N-C. d Calculation of FAN productivity for Co-N-C and CoRu-N-C at 2 h. e Comparison of FAL ammoxidation of representative noble and non-noble metal catalysts. f Recyclability of CoRu-N-C for FAL ammoxidation. Reaction conditions: substrate (0.2 mmol), NH3·H2O (300 mg), CoRu-N-C (10 mg), n-butanol (1.5 mL), 35 °C, 1 bar air, 6 h.
