Fig. 3: Ice sheet geometry.
From: Orbital and millennial-scale forcing of the Patagonian Ice Sheet throughout the Last Glacial Cycle

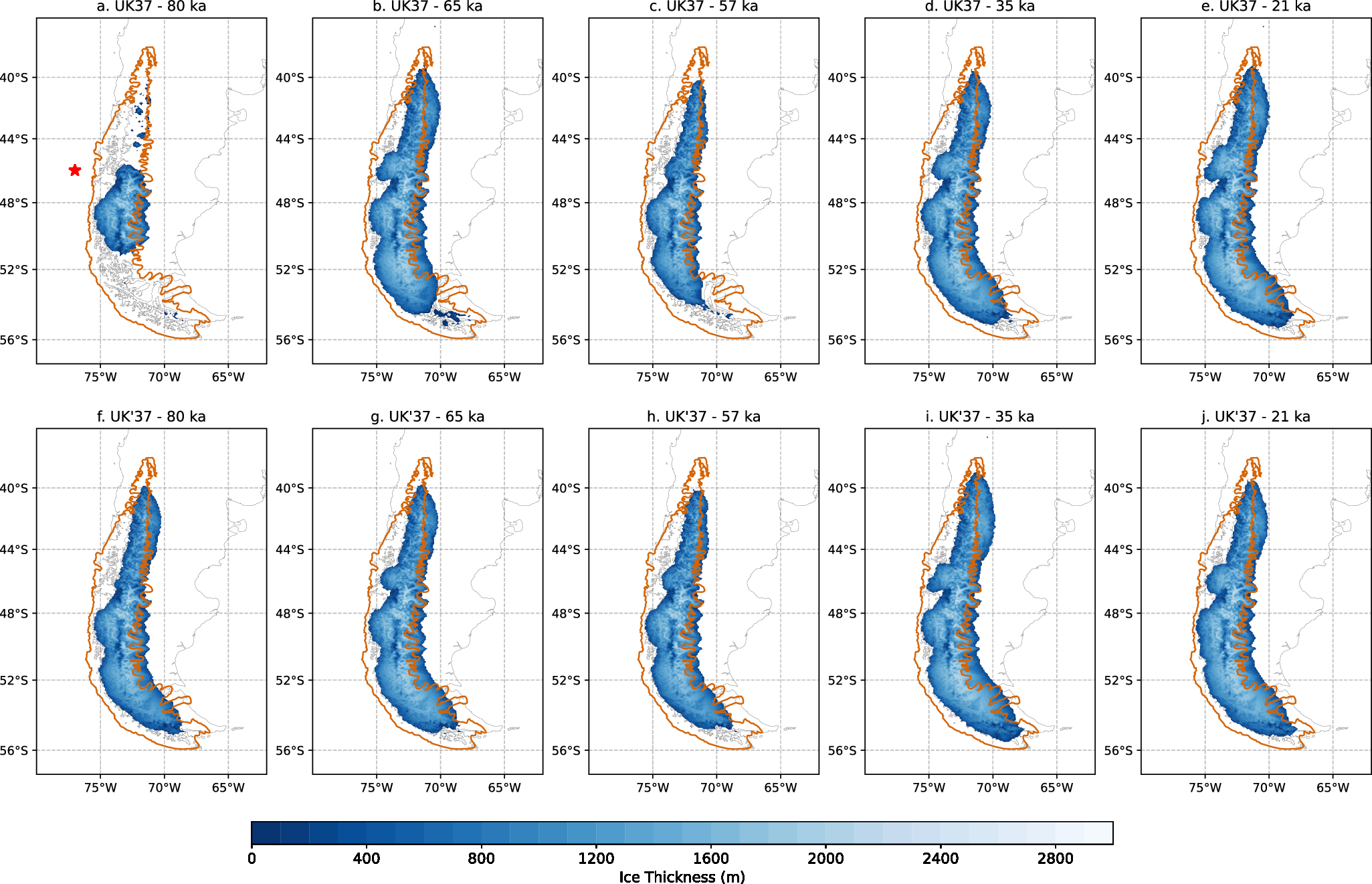

a–e Ice thickness modeled at 80, 65, 57, 35, and 21 ka by using the glacial index method based on \({{{{\rm{U}}}}}_{37}^{K}\). f–j Ice thickness modeled at 80, 65, 57, 35, and 21 ka by using the glacial index method based on \({{{{\rm{U}}}}}_{37}^{{K}^{{\prime} }}\). Those snapshots are chosen as representatives of the Marine Isotope Stage (MIS) 5, MIS4, early MIS3, MIS3-MIS2 transition, and Last Glacial Maximum, respectively. Both proxies, \({{{{\rm{U}}}}}_{37}^{K}\) and \({{{{\rm{U}}}}}_{37}^{{K}^{{\prime} }}\), were obtained from the offshore records MR16-09 PC039. PATICE geochronological reconstruction of the Patagonian Ice Sheet at 35 ka is shown in orange3. Red star indicates the position of the offshore records MR16-09 PC039.
