Fig. 2: Electrocatalytic performance of PA decarboxylation to C2H4.

From: Bipolar ethylene electrosynthesis from CO2 and biowaste acid with total faradaic efficiency over 118%

Fig. 2

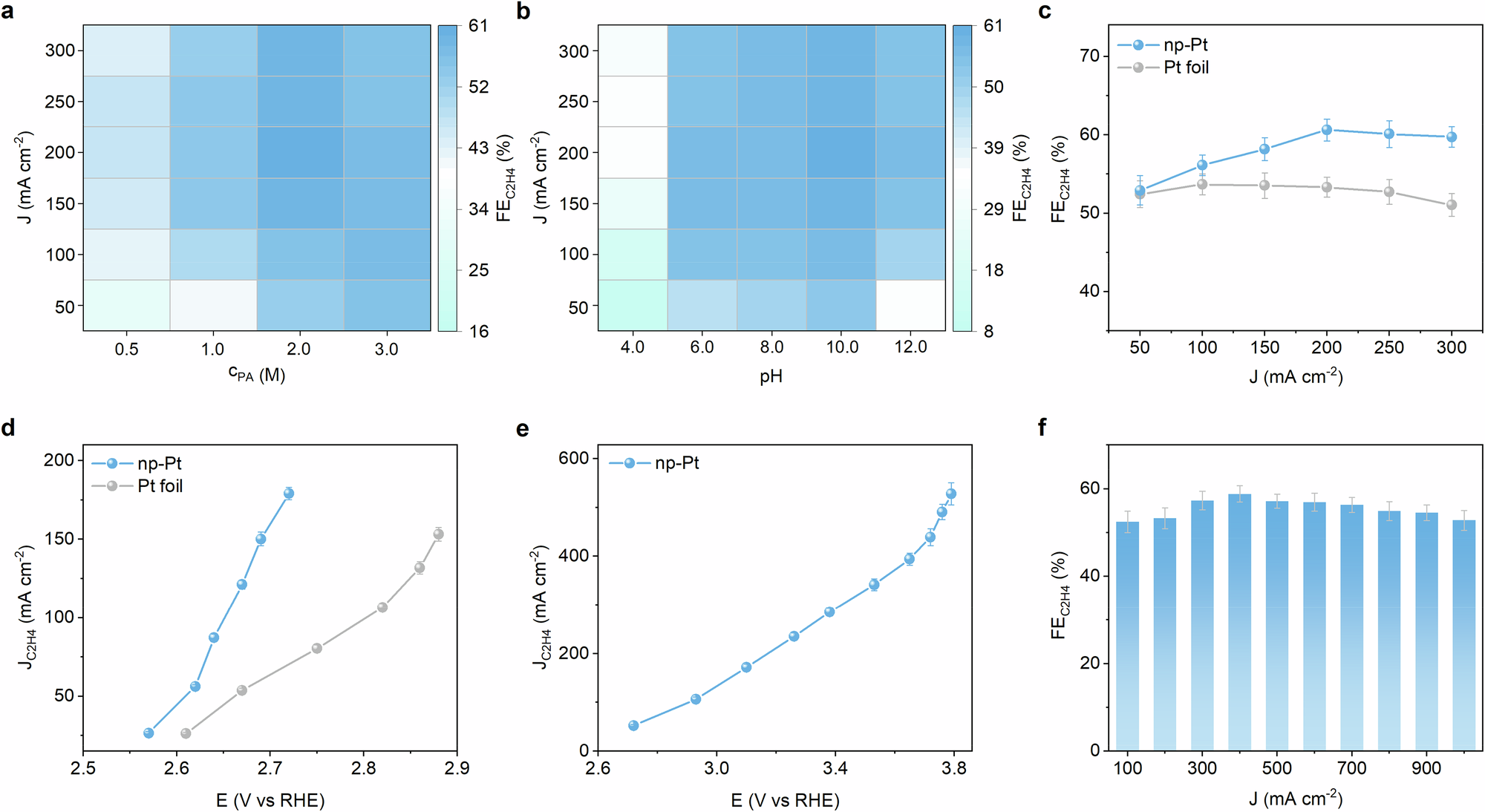

FEC2H4 heatmaps of a PA concentration and b electrolyte pH for anodic PA decarboxylation over np-Pt electrocatalyst in an H-cell. c FEC2H4 under different potentials over np-Pt and Pt foil in an H-cell. d JC2H4 over np-Pt and Pt foil under different potentials with 85% iR correction in an H-cell. e JC2H4 over np-Pt under different potentials with 85% iR correction in a continuous-flow cell. f FEC2H4 over np-Pt under different current densities in a continuous-flow cell. Error bars represent the standard deviation of three independent samples. Data are presented as mean values ± standard deviation. Source data are provided as a Source data file.
