Fig. 4: Macroscopic and microscopic mechanical properties of electrolytes.
From: Mechanically robust halide electrolytes for high-performance all-solid-state batteries

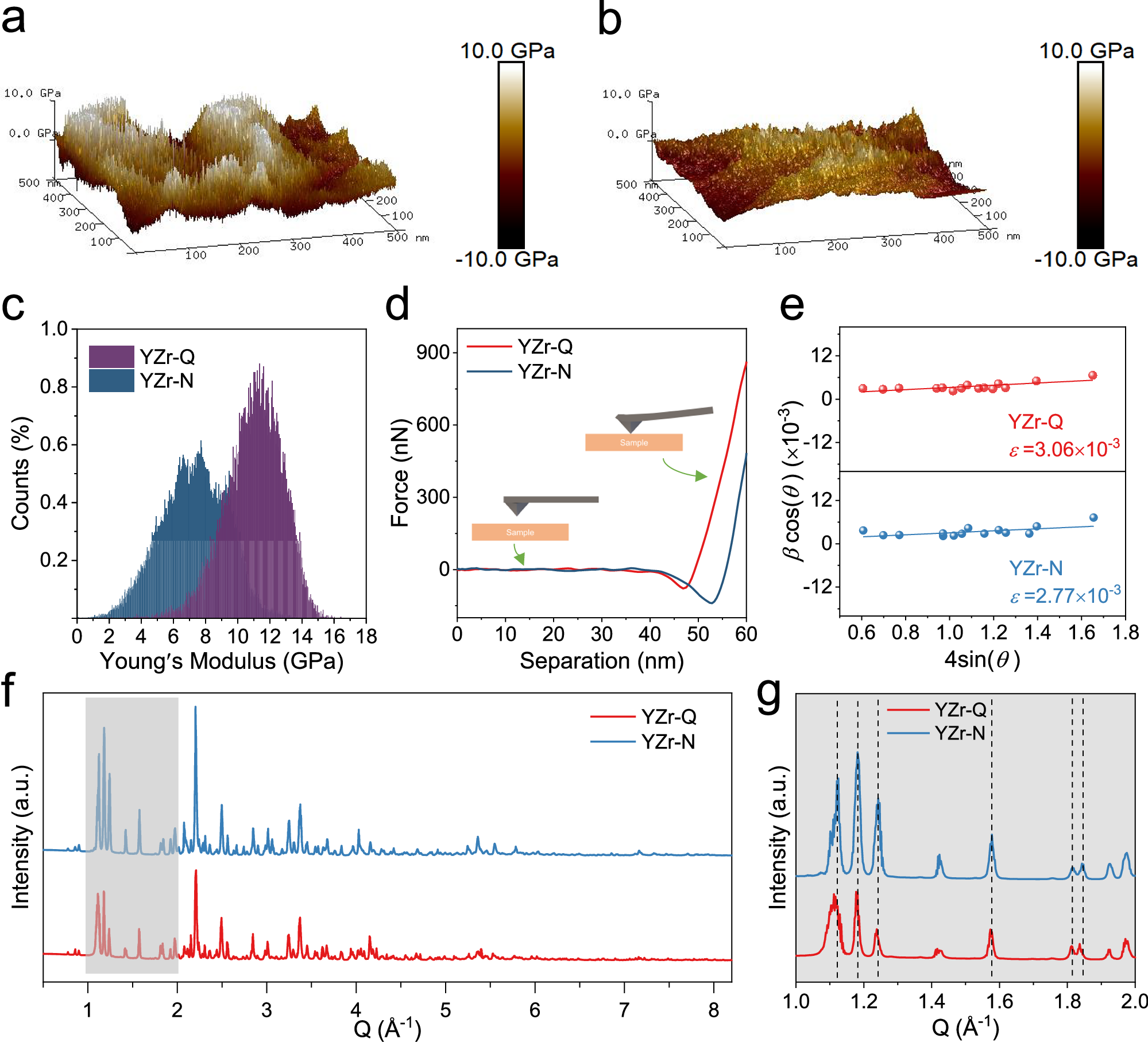

The three-dimensional AFM topography of the YZr-Q (a) and YZr-N (b) samples. c The quantitative distribution of Young’s modulus of YZr-Q and YZr-N samples. d The Force-Separation curves of YZr-Q and YZr-N samples. e W-H analysis of the YZr-Q (top) and YZr-N (bottom) samples, Synchrotron X-ray powder diffraction pattern (f), and local magnification pattern (g) for YZr-Q and YZr-N.
