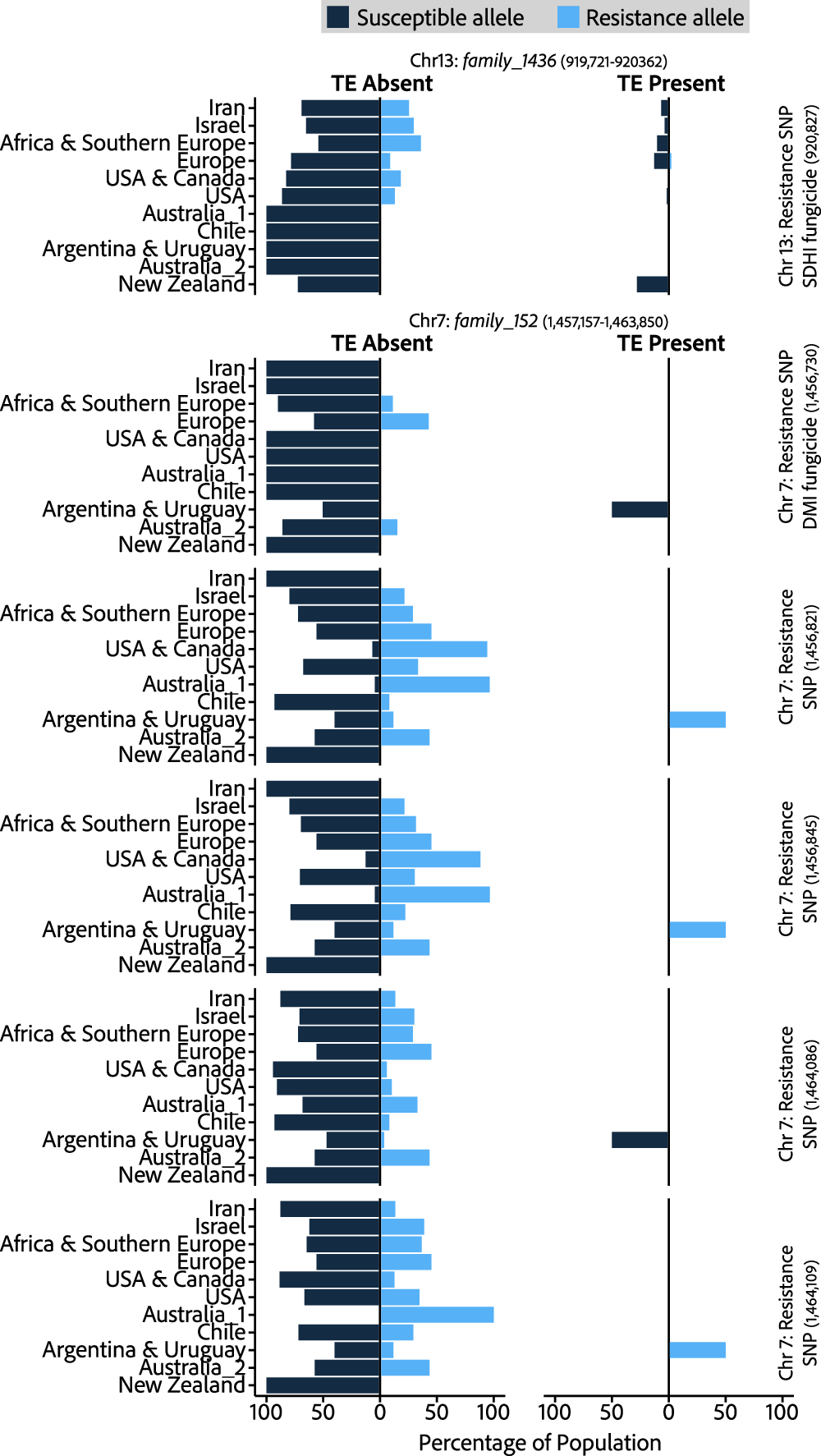

Fig. 6: Co-occurrence of fungicide resistance-associated loci and proximal to candidate adaptive TE insertions.

From: Historic transposon mobilisation waves create distinct pools of adaptive variants in a major crop pathogen

Fig. 6

Populations are ordered using the colonisation timeline of wheat (Fig. 1). Each row is a distinct fungicide resistance-associated loci (SNPs), with bars indicating the presence of susceptible or resistance alleles, as indicated in the key. Left-hand plots show the proportion of isolates within a single population with susceptible or resistance SNPs in the absence of the proximal TE. Right-hand plots show the proportion of isolates within a single population with susceptible or resistance SNPs in the presence of the proximal TE. Source data are provided as a Source Data file.
