Fig. 3: Characterization of polymer chain dispersion and film orientation.

From: Synthesis of crystalline polyamide for synergistically strengthening anticorrelated mechanical property and high-temperature capacitive energy storage

Fig. 3

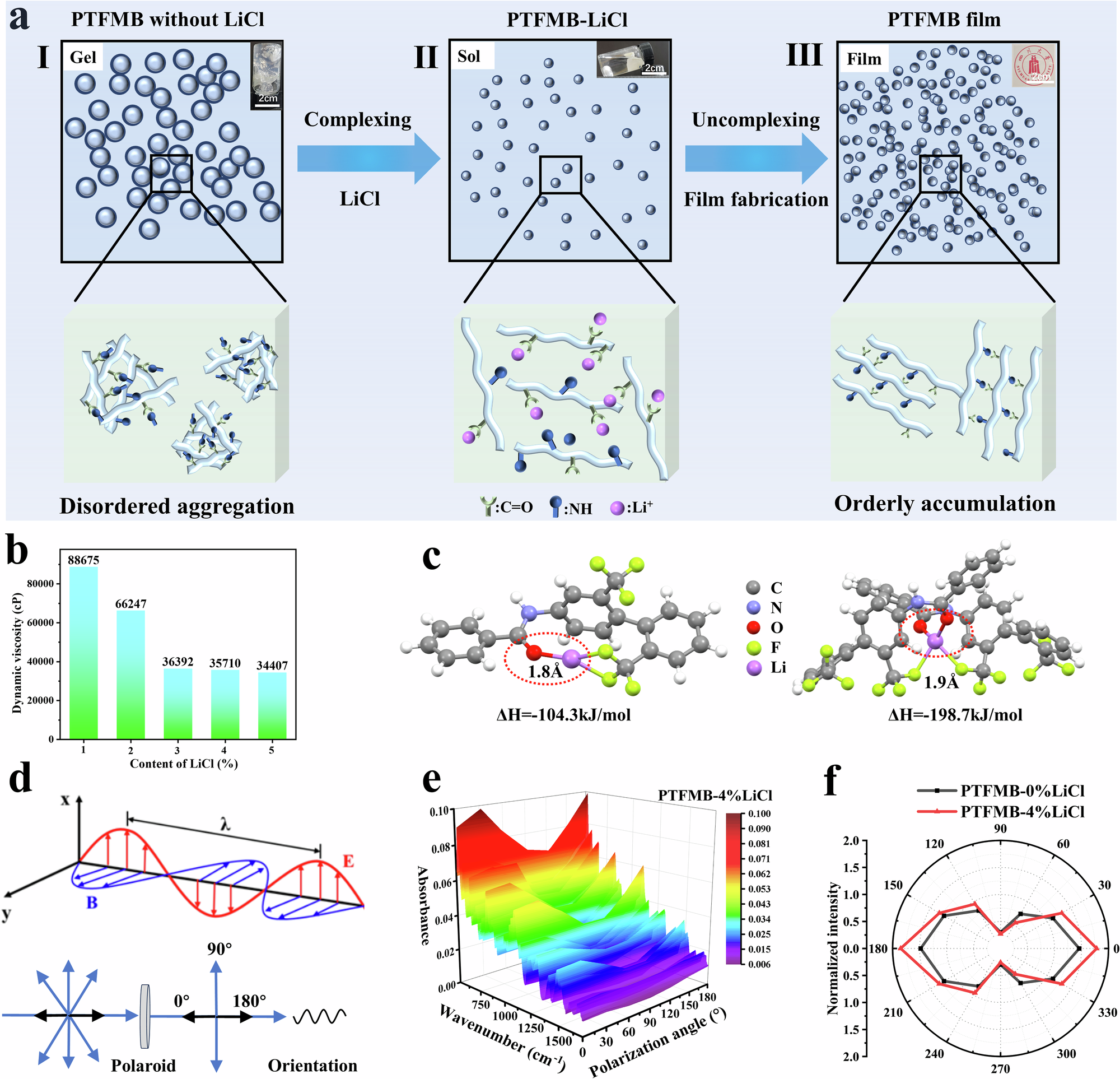

a Diagram of “complexing/uncomplexing” process between LiCl and PTFMB chain. b Dynamic viscosity of PTFMB in DMAc/LiCl solutions with the different LiCl contents. c Schematic of the relative energies of Li+ with one or two PTFMB model compounds. d Schematic of polarizing infrared test. e FTIR spectra of PTFMB-4%LiCl film with different polarization angles of 0 ~ 180°. f Polar diagrams of absorption as a function of incident polarized light angles.
