Fig. 5: SAXS characterisation of structural change in squaramide-based SP assemblies.
From: Using in-situ small-angle scattering to reveal the structure and dynamics of supramolecular polymers

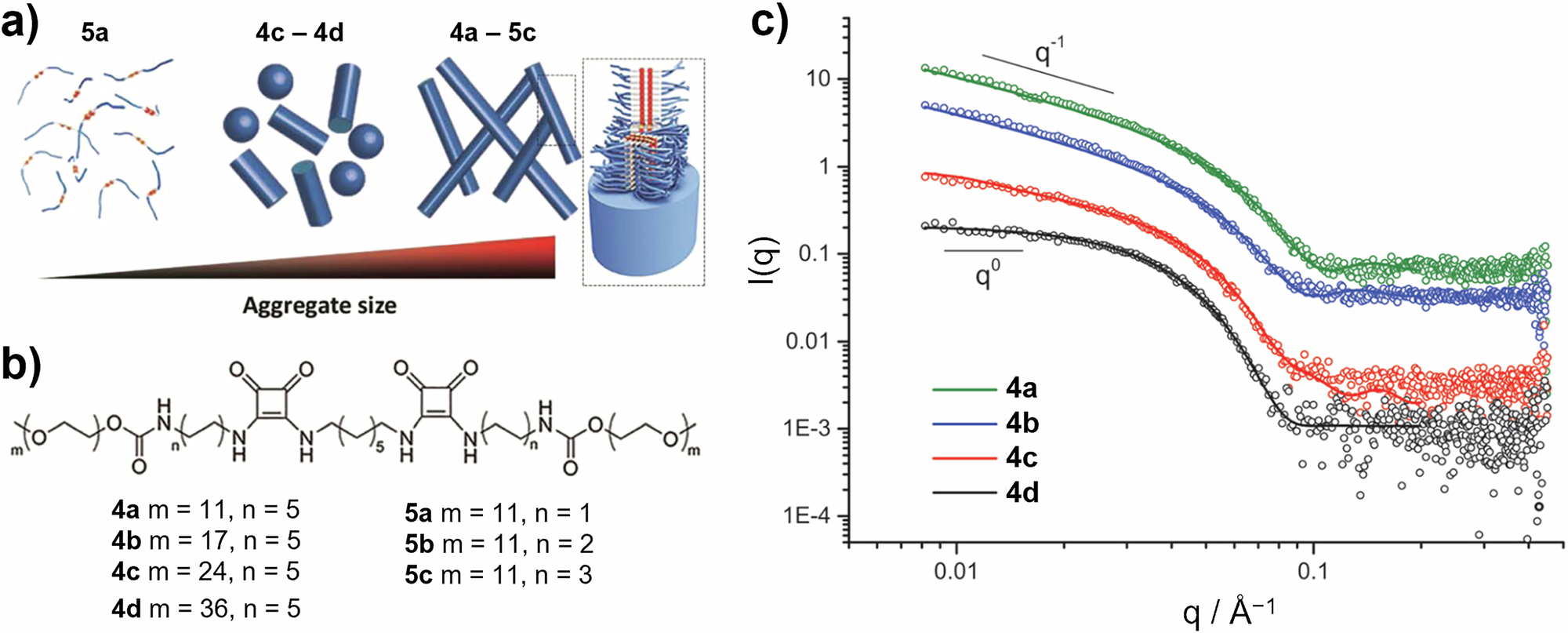

a Schematic representation of the change in structure of SP assemblies formed by the different monomers 4a–4d and 5a–5c shown in (b). c SAXS data arising from 4 mg mL−1 solutions of monomer units 4a–4d67. The solvent-subtracted scattering profiles have been shifted vertically by multiplying by a factor of 2 (red line), 7 (blue line) and 20 (green line). Reproduced from ref. 67 with permission from the Royal Society of Chemistry.
