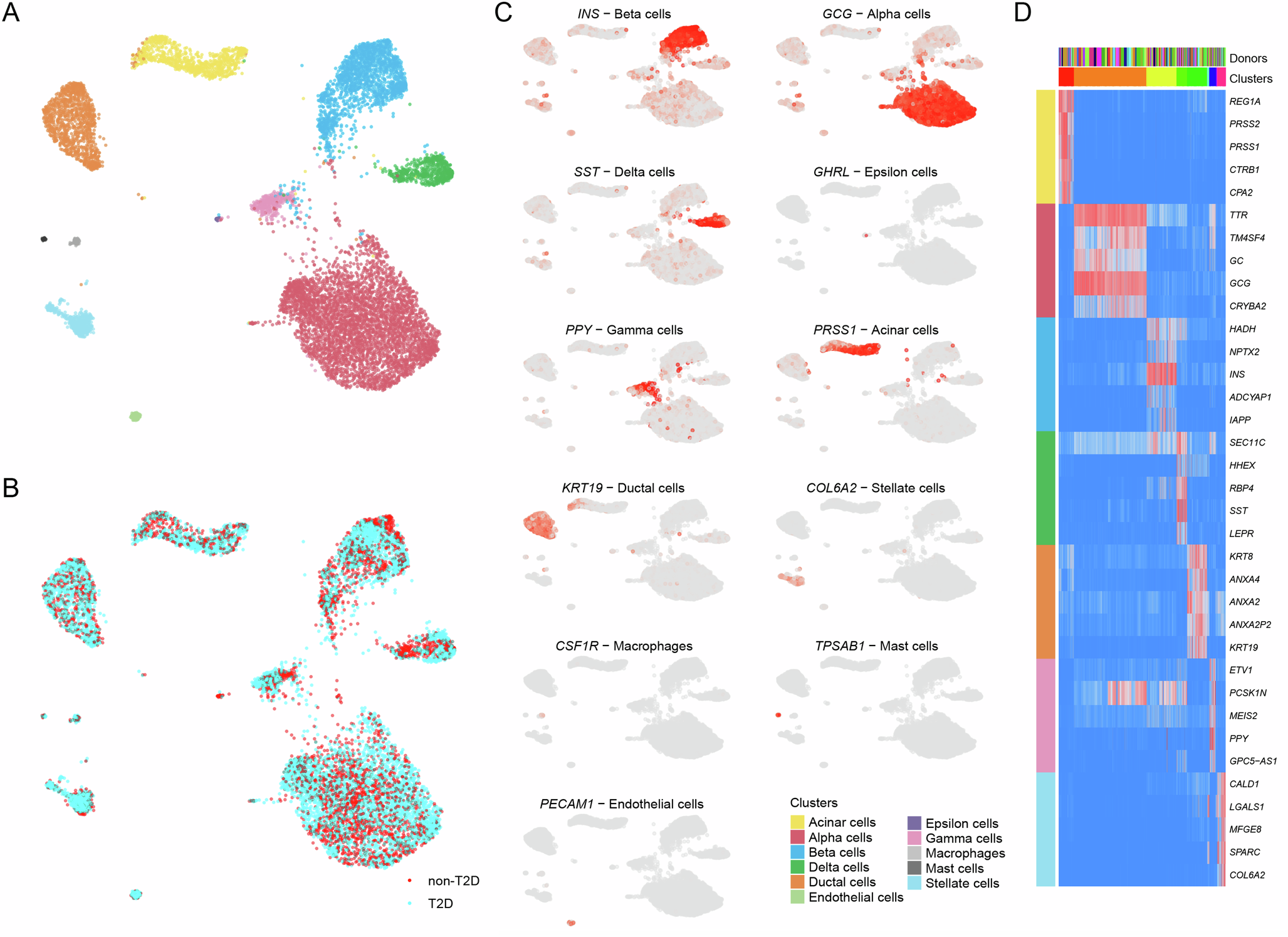

Fig. 1: Cell type clustering.
From: Single-cell mRNA-regulation analysis reveals cell type-specific mechanisms of type 2 diabetes
UMAP visualization of 8511 single cells, from 32 donors with cell types (A) and diagnosis of donors (B) indicated. C Expression of known cell type marker genes for all cell types. D Top specific (differentially expressed) genes in each cell type. No differentially expressed genes were detected for Epsilon cells, Macrophages, Endothelial cells, or Mast cells, due to the low number of recovered cells. See also Supplementary Data 1 and Fig. S1.
