Fig. 1: Study overview.

From: Prefrontal–bed nucleus of the stria terminalis physiological and neuropsychological biomarkers predict therapeutic outcomes in depression

Fig. 1: Study overview.The alternative text for this image may have been generated using AI.

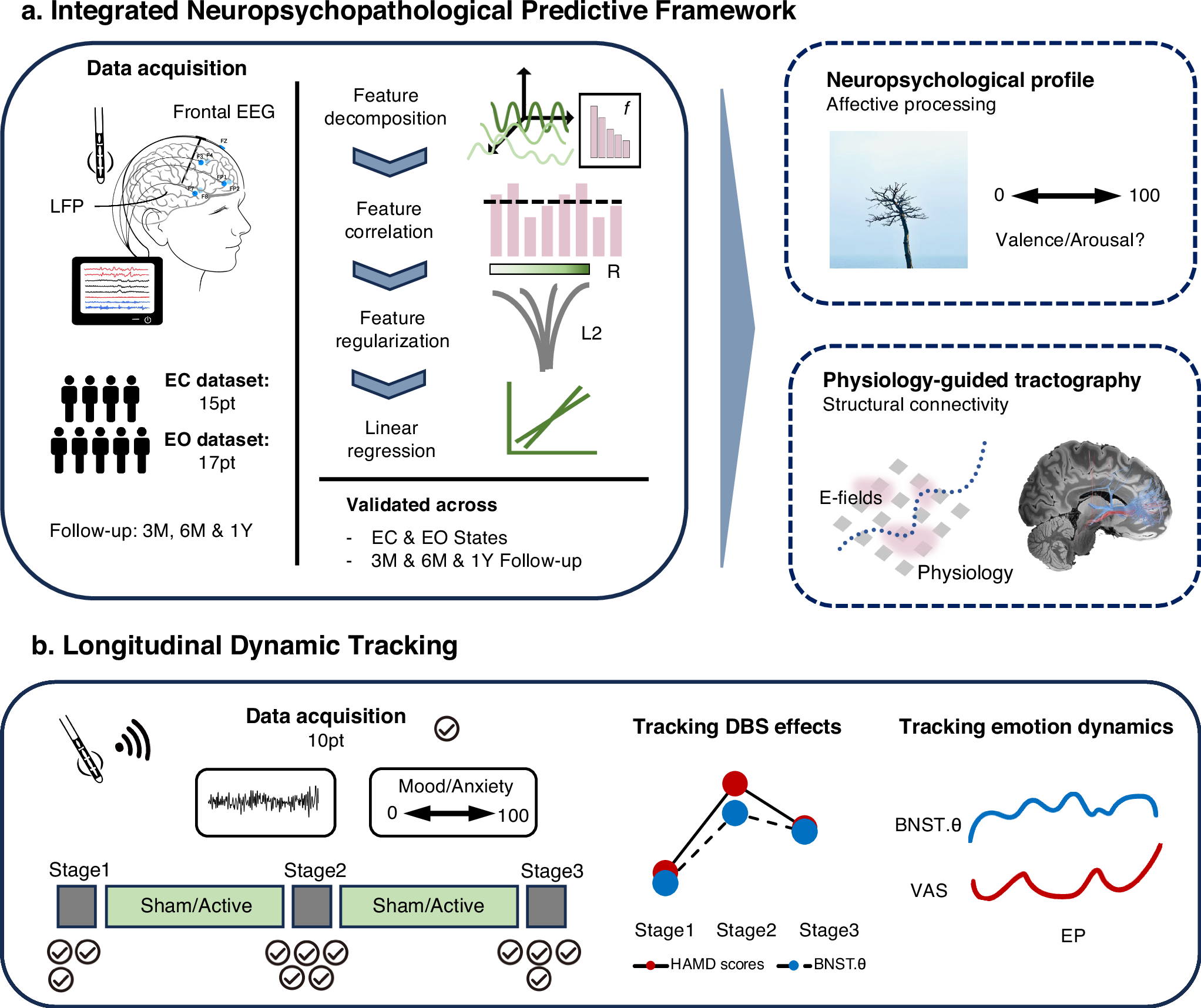

a An integrated neuropsychopathological framework for identification of electrophysiological biomarkers predicting BNST-DBS efficacy. Resting-state LFP and frontal EEG were recorded perioperatively with externalized DBS electrodes. Seventeen patients (eyes-closed dataset) were included, with cross-validation in the eyes-open dataset (n = 15). Spectral features were extracted, correlated with 3-, 6-, and 12-month clinical outcomes, and entered into a penalized ridge regression model with permutation-based feature selection. Perioperative affective tasks captured emotional bias ratings, and prefrontal–BNST networks were mapped with physiology-guided tractography. b Longitudinal clinical and physiological tracking. Repeated 5-min resting-state recordings with momentary emotional ratings were obtained from 10 patients (8–17 sessions each) during the crossover period. DBS effects on BNST theta dynamics and their relationship to emotional state fluctuations were examined. EC eyes-closed dataset, EO eyes-open dataset, EEG electroencephalography, 3M 3 months, 6M 6 months, 12M 12 months, LFP local field potential, L2 L2 (ridge) regularization, pt patients, EP episodes, VAS visual analog scale, HAMD Hamilton Depression Scale, DBS deep brain stimulation, BNST bed nucleus of the stria terminalis.
