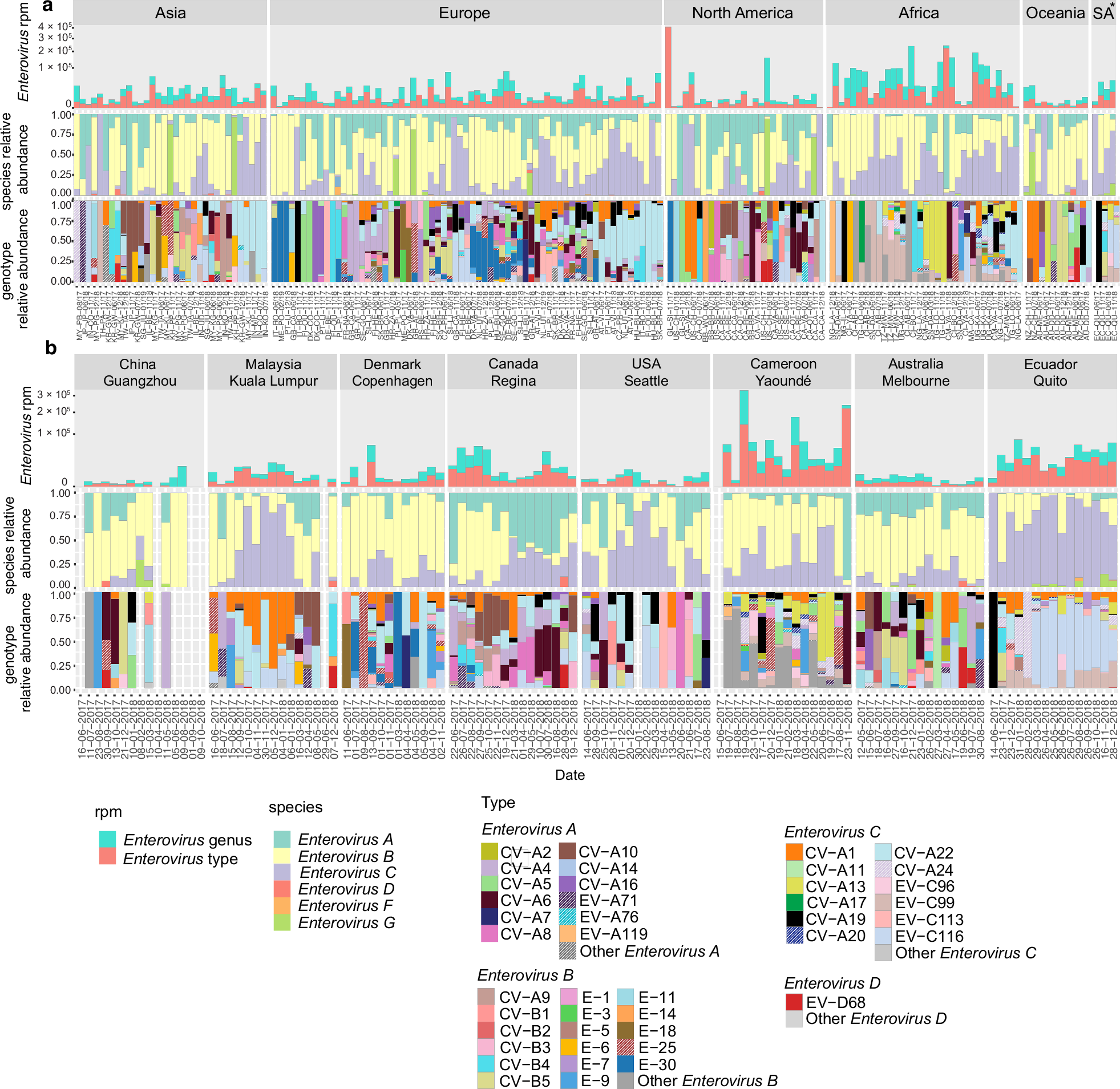

Fig. 9: Global prevalence and abundance of Enterovirus genotypes in urban wastewater.
From: Unveiling the global urban virome through wastewater metagenomics
Biannual (a) and longitudinal data (b) are shown. In each panel, stacked bar plots display reads per million viral reads assigned to the Enterovirus genus (green) and to specific genotypes (red), followed by the relative abundances of Enterovirus species and of genotypes. The biannual samples were grouped using hierarchical clustering based on genotype composition. Other = genotypes detected in fewer than 10 samples, including (vaccine-derived) poliovirus type 3. SA South America.
