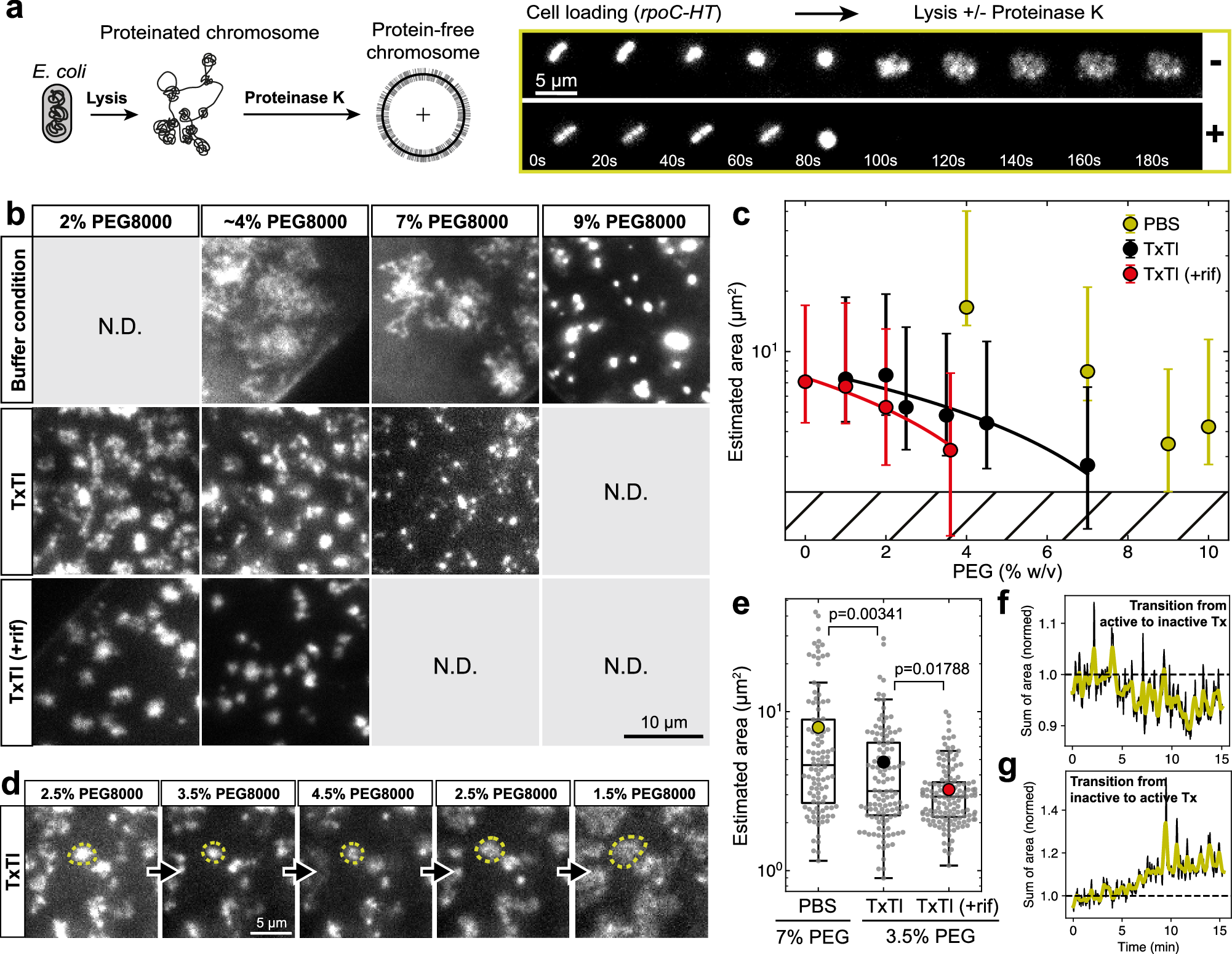

Fig. 5: Effect of macromolecular crowding and transcription on conformation of protein-free chromosomes.
