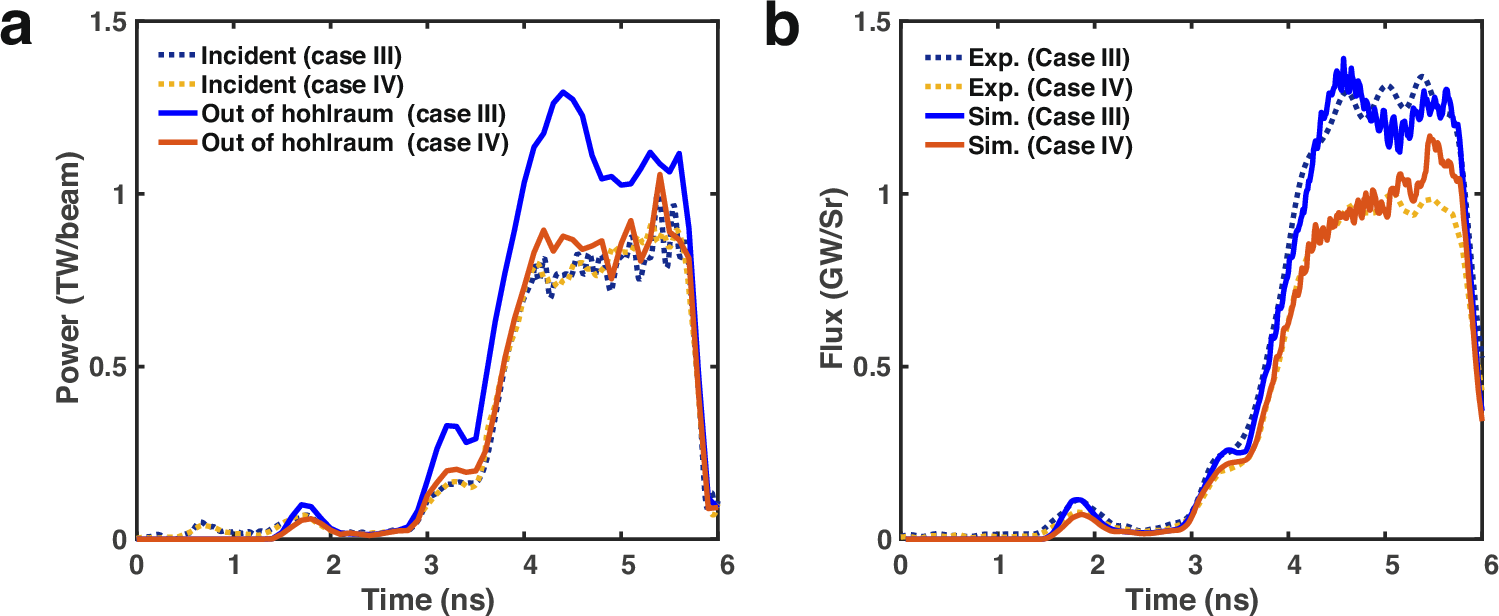

Fig. 7: Laser power and x-ray radiation flux in the CBET experiment.
From: Revealing crossed-beam energy transfer as the origin of asymmetric backscattering in hohlraums
a The incident laser power of beam B1 (dotted lines) in cases III (navy blue) and IV (yellow) and its transmitted power after passing through hohlraum (solid lines) in cases III (blue) and IV (orange). In case III, beam B1 obtains laser power from its neighbor beams via CBET. b The dotted lines are the measured x-ray radiation flux in cases III (navy blue) and IV (yellow), and the solid lines are the simulation results obtained with the laser power of beam B1 after passing hohlraum in cases III (blue) and IV (orange).
