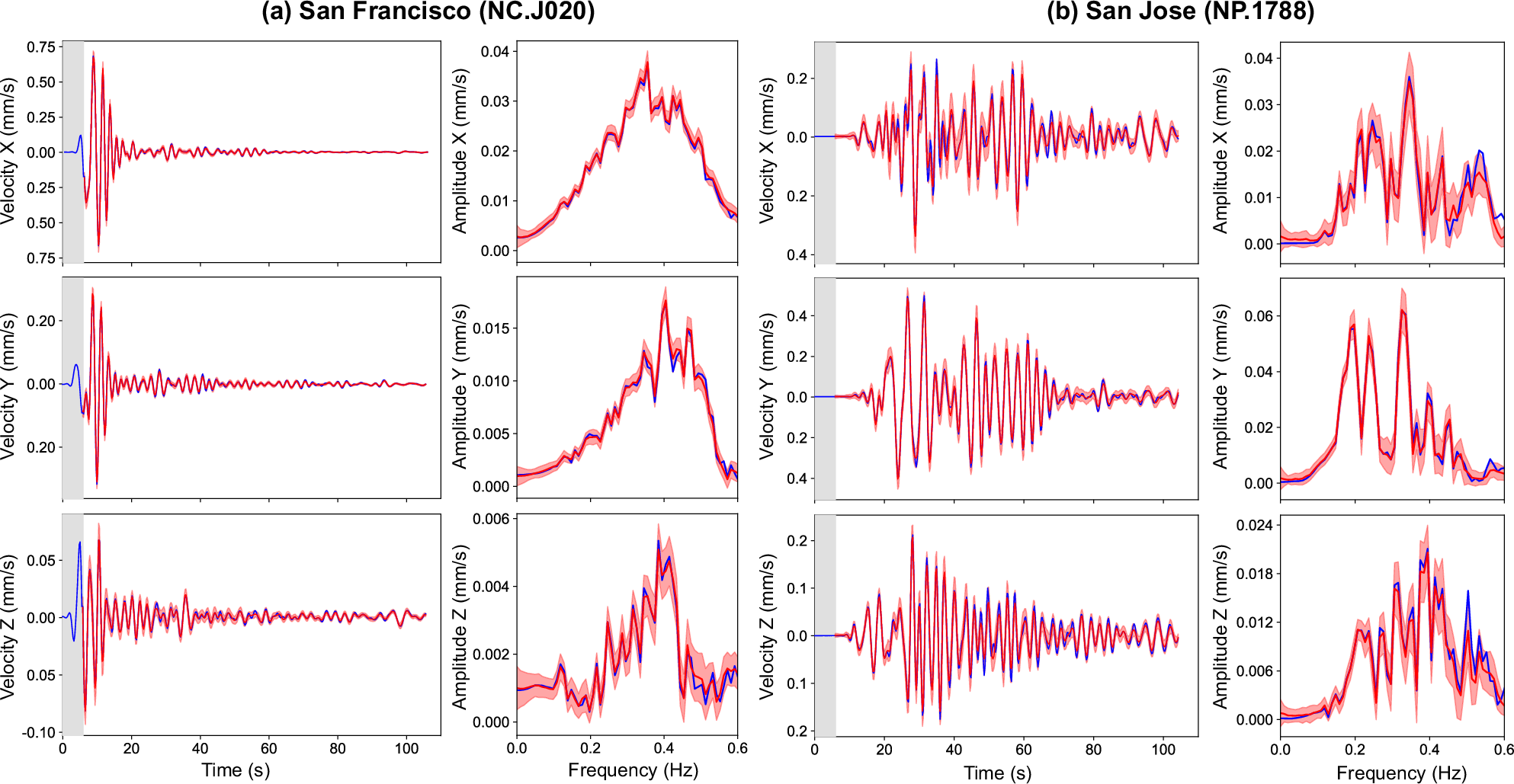

Fig. 3: Waveform visualization at selected stations.
From: Rapid wavefield forecasting for earthquake early warning via deep sequence to sequence learning
Waveforms from a San Francisco (NC.J020) and b San Jose (NP.1788) for a point-source earthquake. The identifiers NC.J020 and NP.1788 refer to seismic sensors. The blue lines indicate the ground truth, the red lines show the mean of the predicted waveforms, and the red shaded areas represent three times the standard deviation bands. The gray shaded areas indicate the input time window of 5.7 s.
