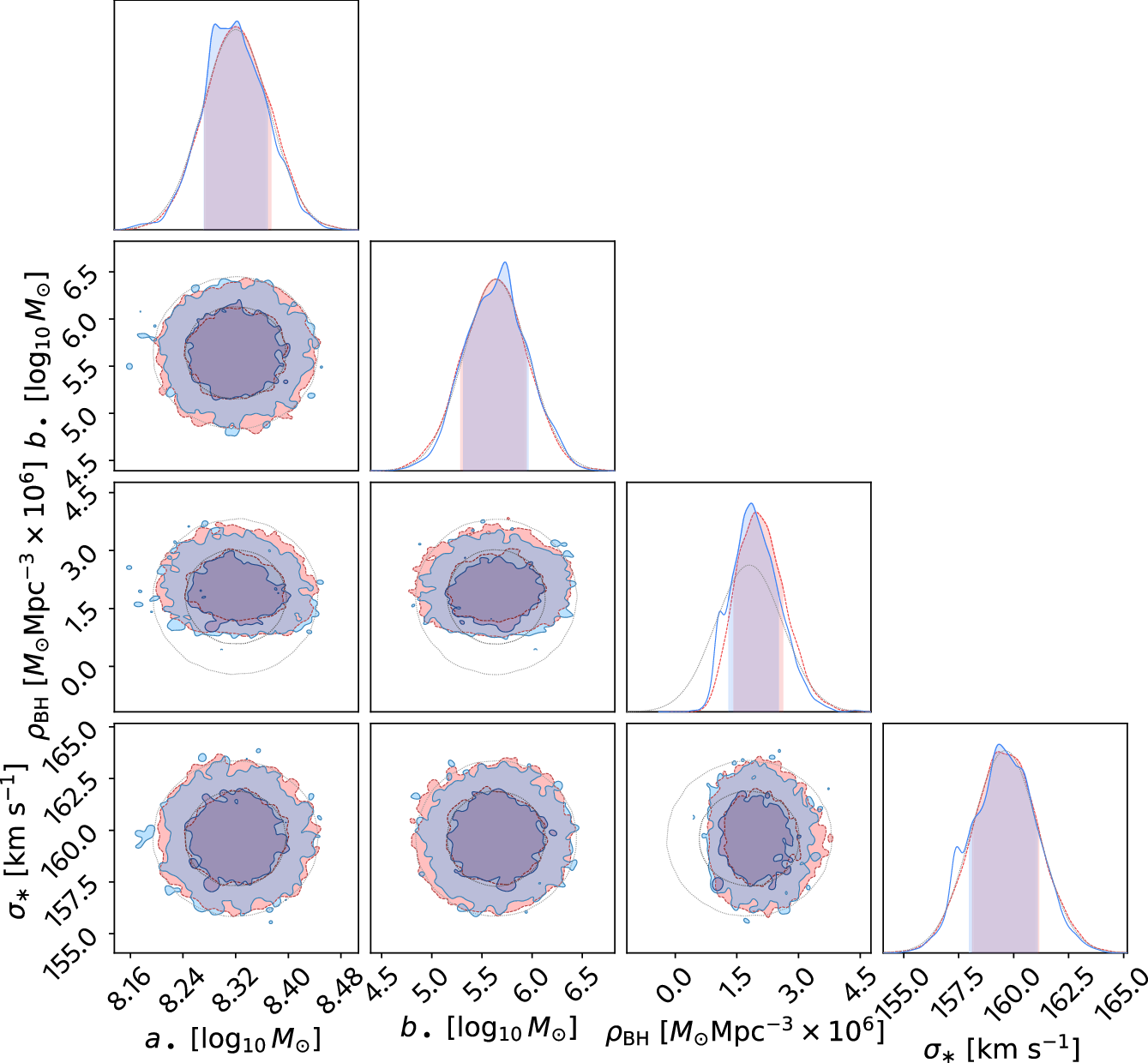

Fig. 3: Posterior of the population parameters for supermassive black hole binaries with the 10-year data.
From: Reading signatures of supermassive binary black holes in pulsar timing array observations
Effectively, the constraints are provided solely by the inferred characteristic strain amplitude of the gravitational wave background, assuming the strain power law index of − 2/3. Hellings-Downs correlations are included in the model.
