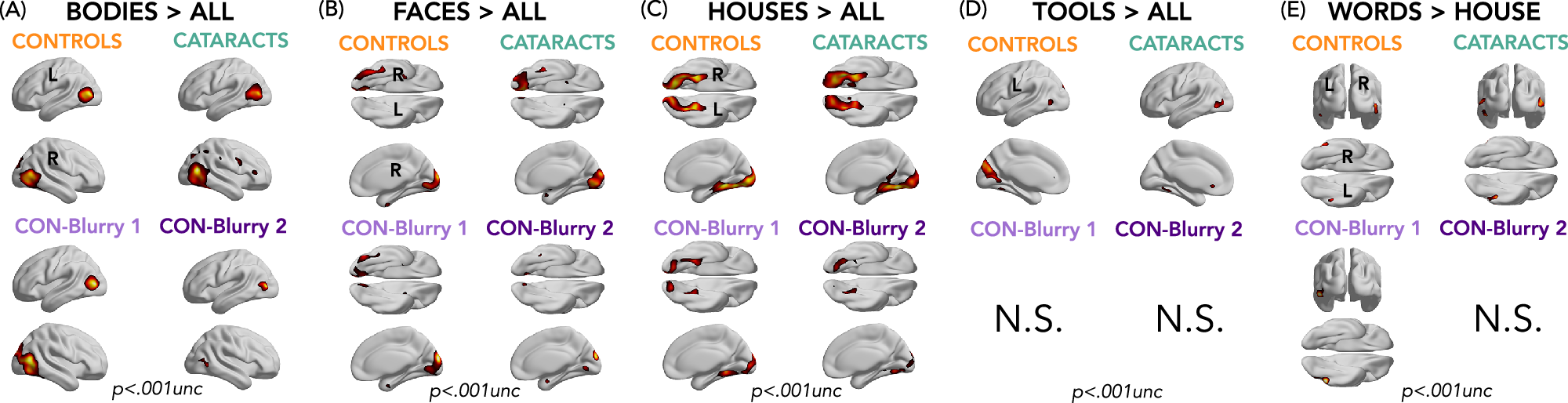

Fig. 3: Results from univariate analyses across categories.
Each column displays results for one category: bodies (A), faces (B), houses (C), tools (D), and words (E). Each plot shows within-group activation maps (voxel-wise threshold p < 0.001, uncorrected). For each category, we contrasted that category against all others, except for words (E), where we show words > houses because words > all did not yield suprathreshold voxels at this threshold across groups. BrainNet Viewer was used for the visualization of brain maps120. Analyses were performed in SPM12. First-level contrast images were additionally smoothed (6 mm FWHM) and entered into group-level one-sample t-tests (within groups); all tests were two-sided. Maps are shown at voxel-wise p < 0.001, uncorrected (no multiple-comparisons correction applied for this univariate figure). Sample sizes (biological replicates): n = 16 Controls, n = 14 Cataract-reversal, n = 14 Controls Blurry1, n = 14 Controls Blurry2.
