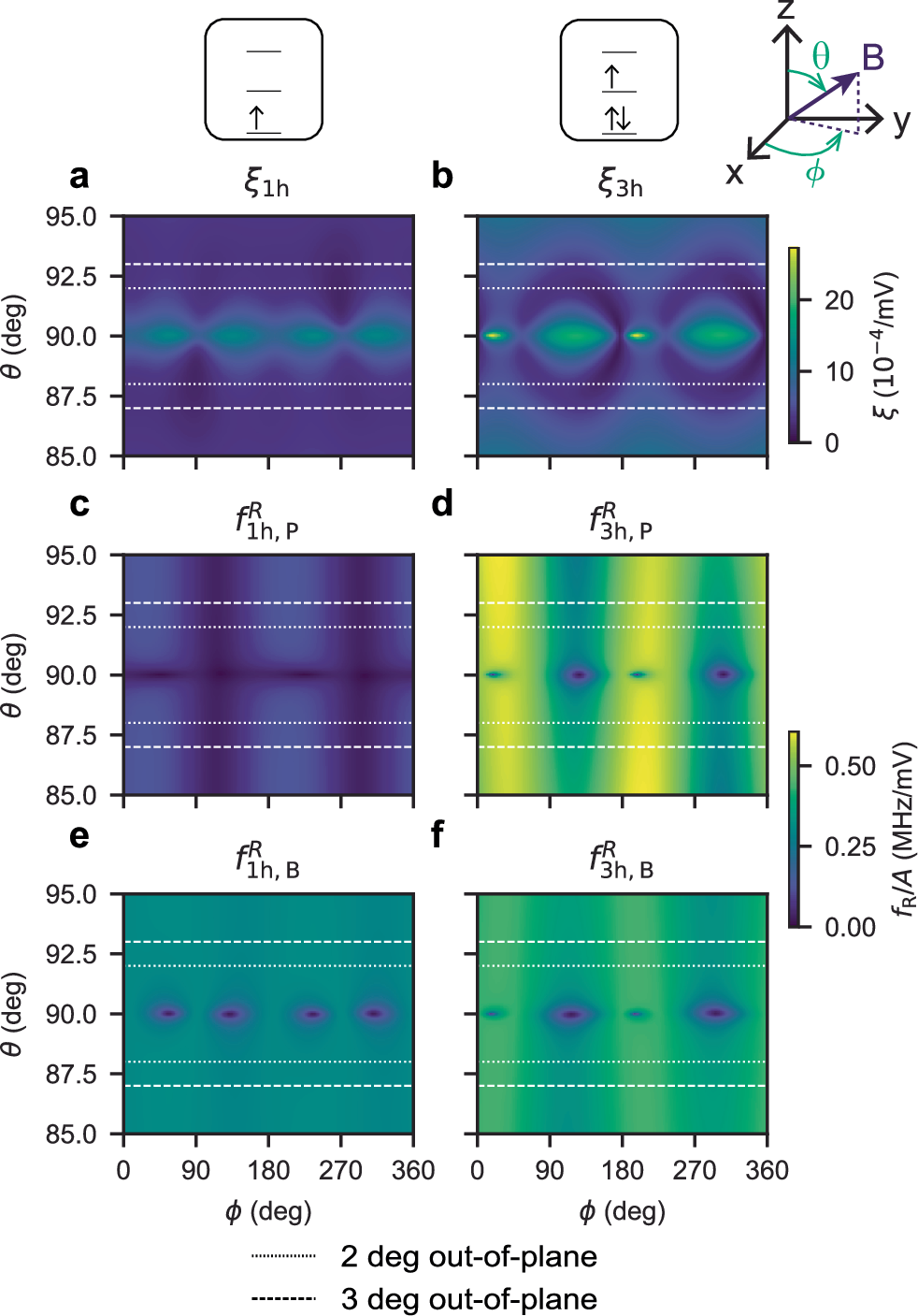

Fig. 3: Simulated ξ and Rabi frequency fR as a function of magnetic field angle at 41 mT in single- and three-hole occupancies.
From: Robust and localised control of a 10-spin qubit array in germanium
Data have been obtained through full configuration interaction simulations. a ξ in the single-hole occupation, b ξ in the triple-hole occupation, c fR in the single-hole occupation when driving with the top plunger, d fR in the triple-hole occupation when driving with the top plunger, e fR in the single-hole occupation when driving with the most efficient barrier, f fR in the triple-hole occupation when driving with the most efficient barrier. The dashed and dotted lines indicate the estimated operation field angle of the experiments.
