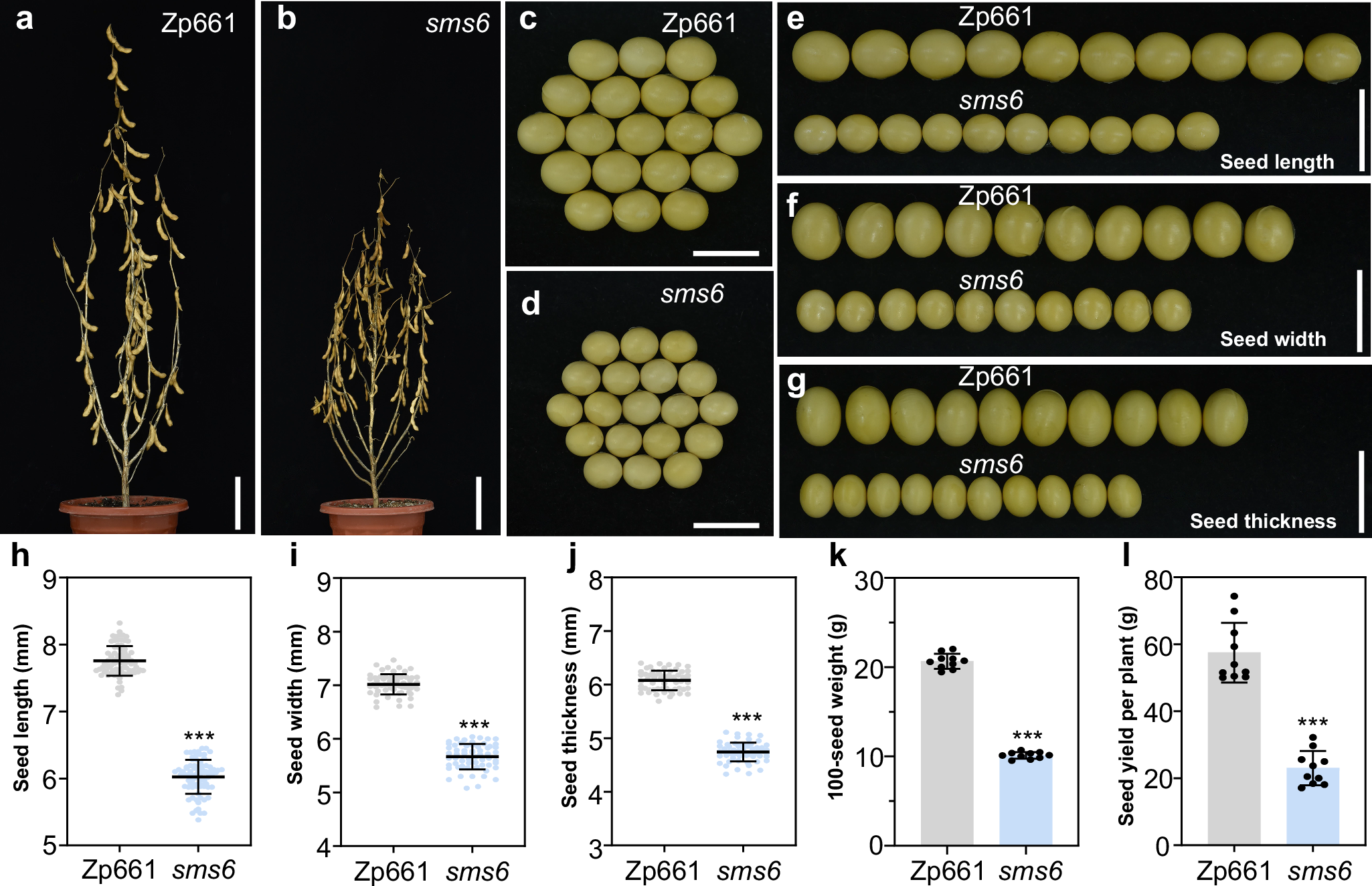

Fig. 1: Phenotypic characterization of the soybean sms6 mutant.
From: A 14-3-3 modulator of seed weight and quality for unlocking the yield potential of soybean
Images showing the architectures of Zp661 (a) and sms6 (b) plants. Bar = 10 cm. Images showing seed size of Zp661 (c) and sms6 (d) plants. Images showing seed length (e), width (f), and thickness (g) in Zp661 and sms6 plants. Bars = 10 mm. Quantification of seed length (h), seed width (i), seed thickness (j), 100-seed weight (k), and seed yield per plant (l) of Zp661 and sms6 plants. Seed length, width, and thickness were measured in at least 60 seeds (n = 78, 60, and 60 seeds for h, i, and j, respectively), while 100-seed weight and seed yield per plant were measured in 10 individuals (n = 10 for k and l). Data are shown as means ± SD. Statistically significant differences were determined by two-sided Student’s t-tests. ***p < 0.001. Source data are provided as a Source Data file.
