Fig. 6: Extreme event time series.
From: Shifting dominant periods in extreme climate impacts under global warming

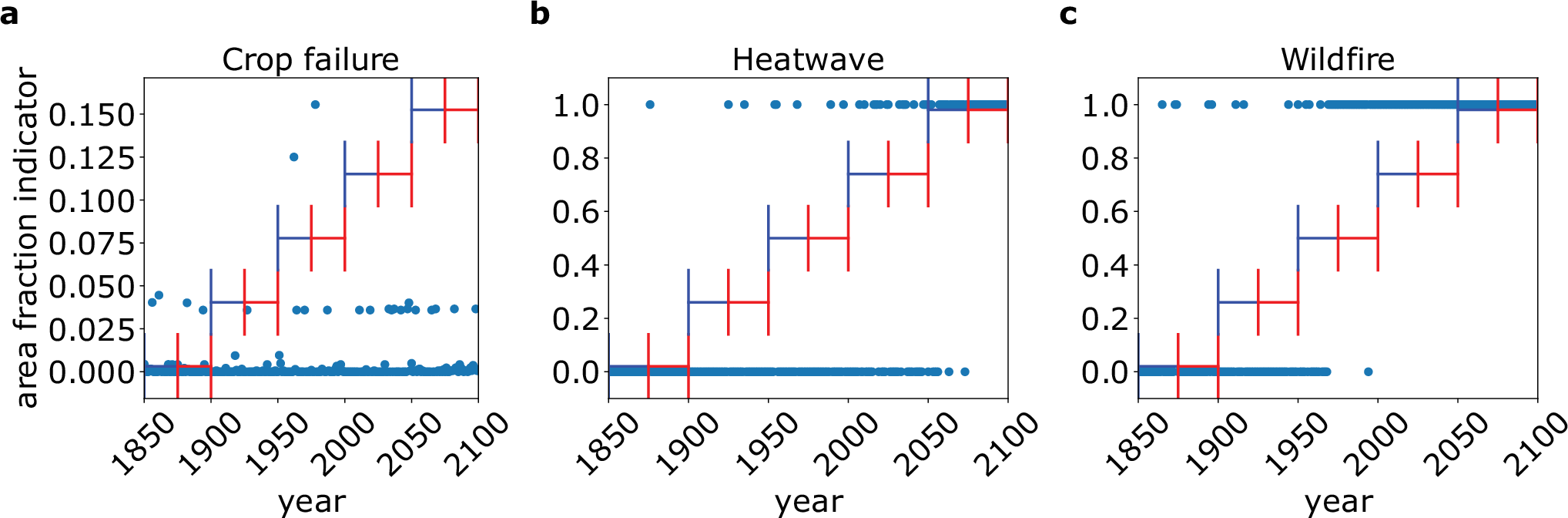

Area fraction affected by extreme events as a function of time. The blue and red whiskers denote the time windows 1850−1899, …, 2050−2099 that form the basis for the auto-correlation function in Eq. (1). More specifically, the blue section signifies the interval (t0, t0 + ΔT) while the red section marks (t0 + ΔT, t0 + 2ΔT). The whiskers are shifted to avoid overlapping of red and blue segments. a Crop failure time series for climate model MPI-ESM1-2-HR, impact model EPIC-IIASA, for SSP5-8.5 at latitude longitude coordinates (−15.25, 28.25). b Heatwave time series for climate model GFDL-ESM4, impact model HWMID, for SSP5-8.5 at grid location (23.25, 72.25). c Wildfire time series for climate model GFDL-ESM4, impact model LPJmL-5-7-10-fire, for SSP5-8.5 at grid location (−15.25, 28.25).
