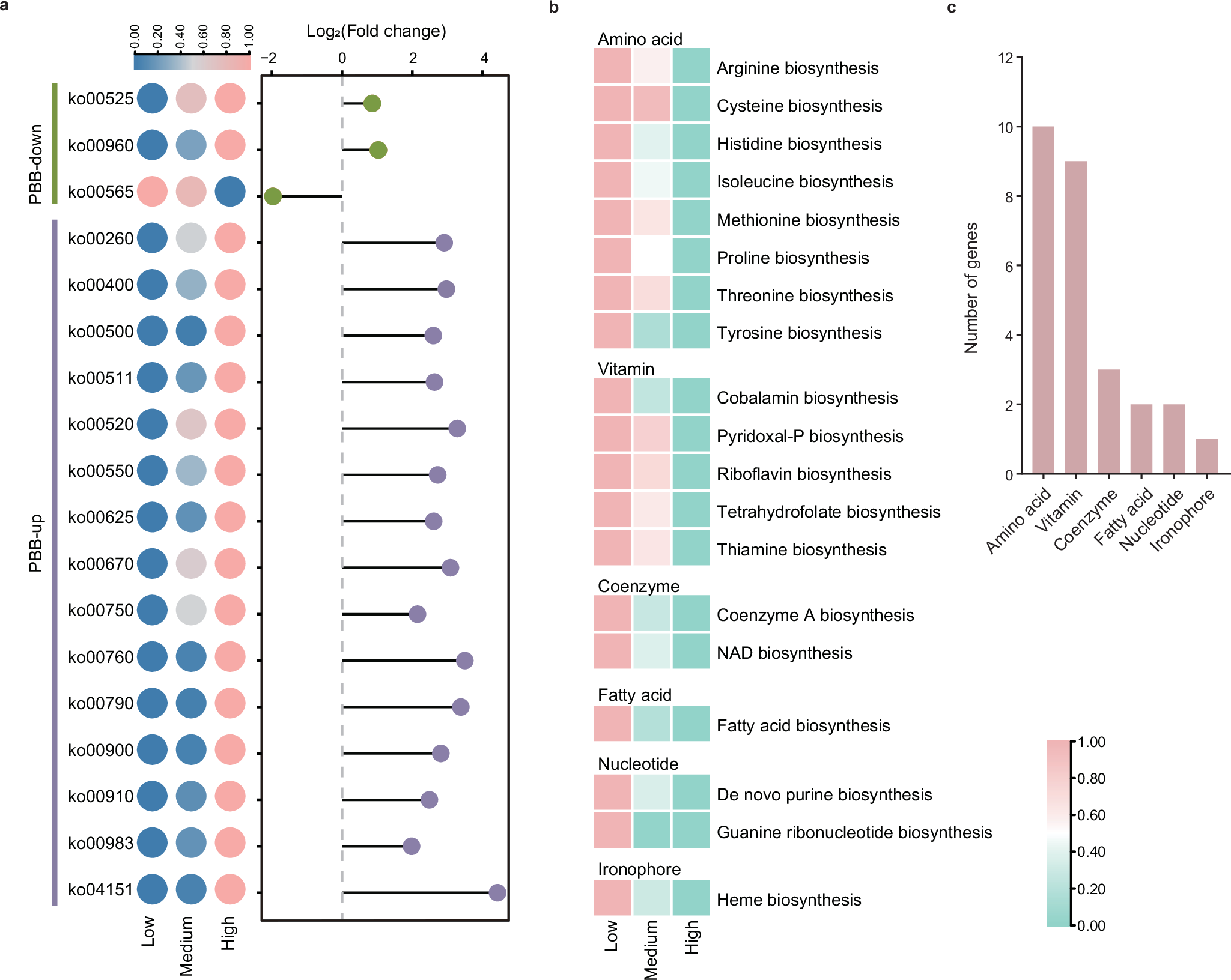

Fig. 5: Effects of pesticide risk on functional and growth factor biosynthesis of plant-beneficial bacteria (PBB).
From: Global variation in plant-beneficial bacteria in soil under pesticide stress
a Functional pathways significantly enriched or reduced with increasing pesticide risk (Kruskal‒Wallis test). PBB-up denotes PBB that increases significantly with increasing pesticide risk. PBB-down denotes PBB that decreases significantly with increasing pesticide risk. b Significantly reduced growth factor biosynthesis belongs to six biosynthetic categories in significantly reduced PBB with pesticide contamination (Kruskal‒Wallis test). c Distribution of the number of significantly altered genes across the six biosynthetic categories. Source data are provided as a Source Data file.
