Fig. 1: Spatial distribution and comparison of the simulated global dissolved silica fluxes (FDSi) in the present period. | Nature Communications

Fig. 1: Spatial distribution and comparison of the simulated global dissolved silica fluxes (FDSi) in the present period.

From: Silicate chemical weathering disrupts the global patterns of phosphorus limitation

Fig. 1: Spatial distribution and comparison of the simulated global dissolved silica fluxes (FDSi) in the present period.

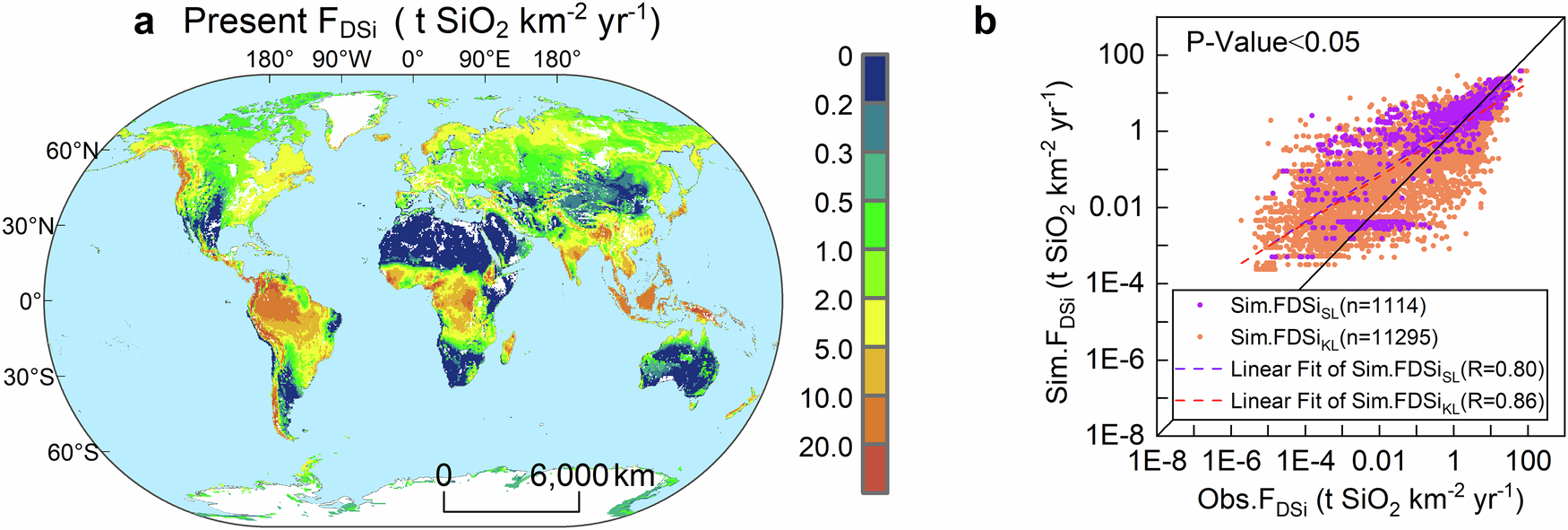

a Spatial distribution of simulated FDSi. b Comparison of simulated FDSi with observed FDSi with observed FDSi from supply-limited regions (SL) and kinetic-limited regions (KL). The black line represents the 1:1 line. The base map for all maps in this study is derived from the Standard Map Service of the Ministry of Natural Resources of China (review drawing number: GS(2016)1665).
