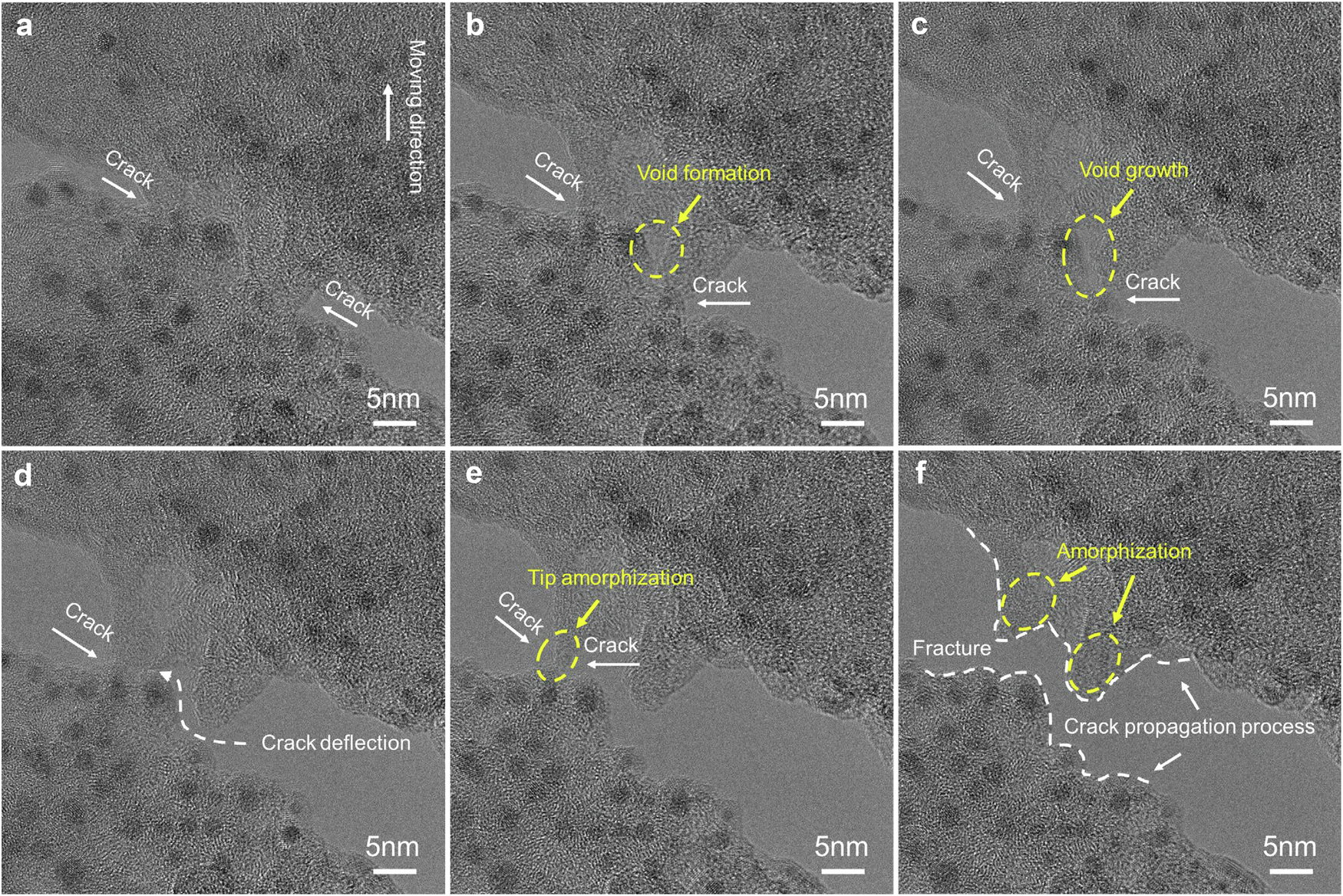

Fig. 5: Dynamic crack propagation process under in-situ HRTEM tensile conditions.
From: Graphene–amorphous carbon with interwoven networks for enhanced strength
a Crack propagation. b Void formation. c Void growth. d Crack deflection. e Tip amorphization. f Fracture. Each experiment in a–f was independently repeated three times with similar results.
