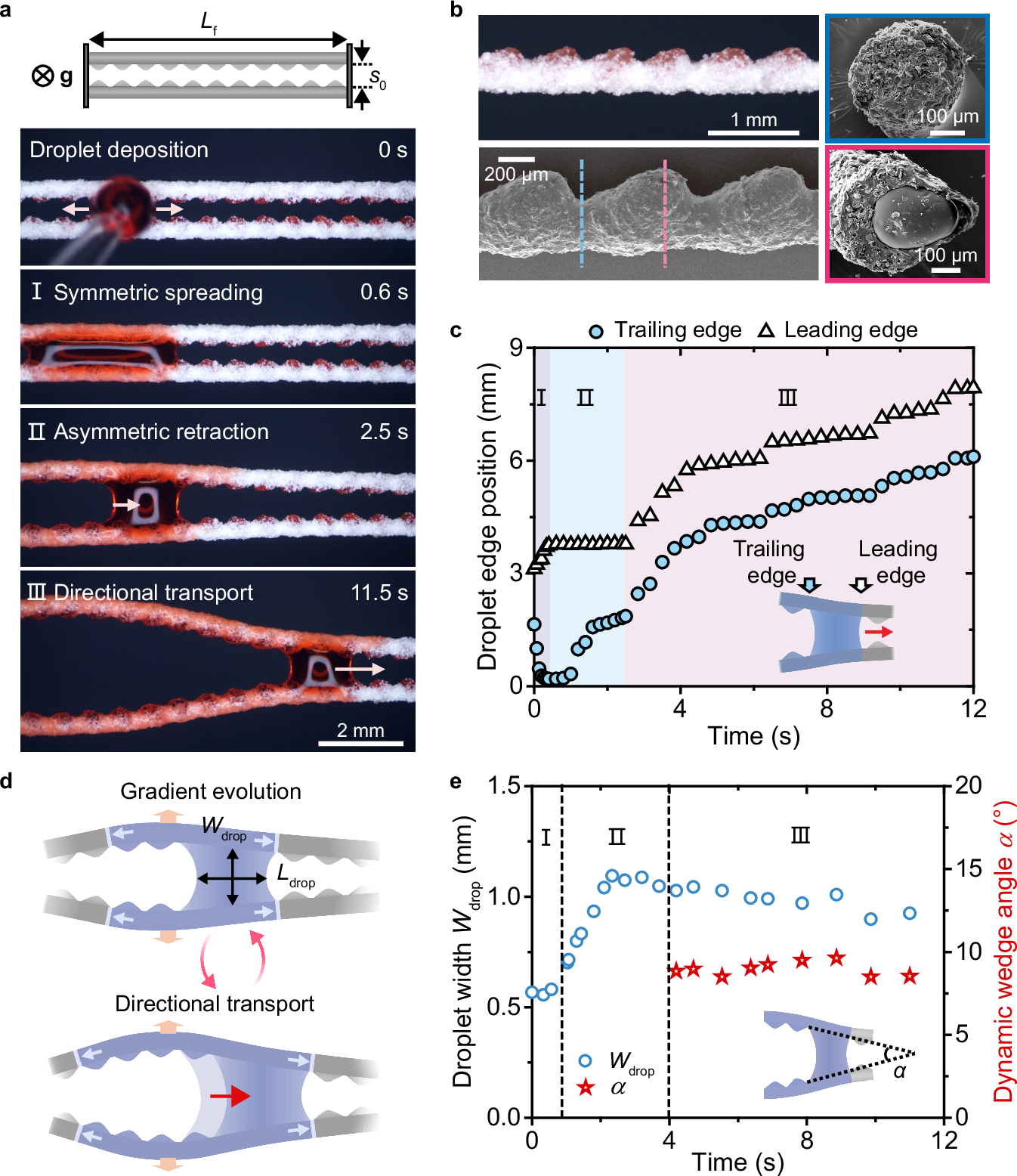

Fig. 2: Directional droplet transport on SEMR.
From: Spontaneous droplet transport on shape-evolving microfiber rails
