Fig. 4: Graded CoFeB magnonic channels.

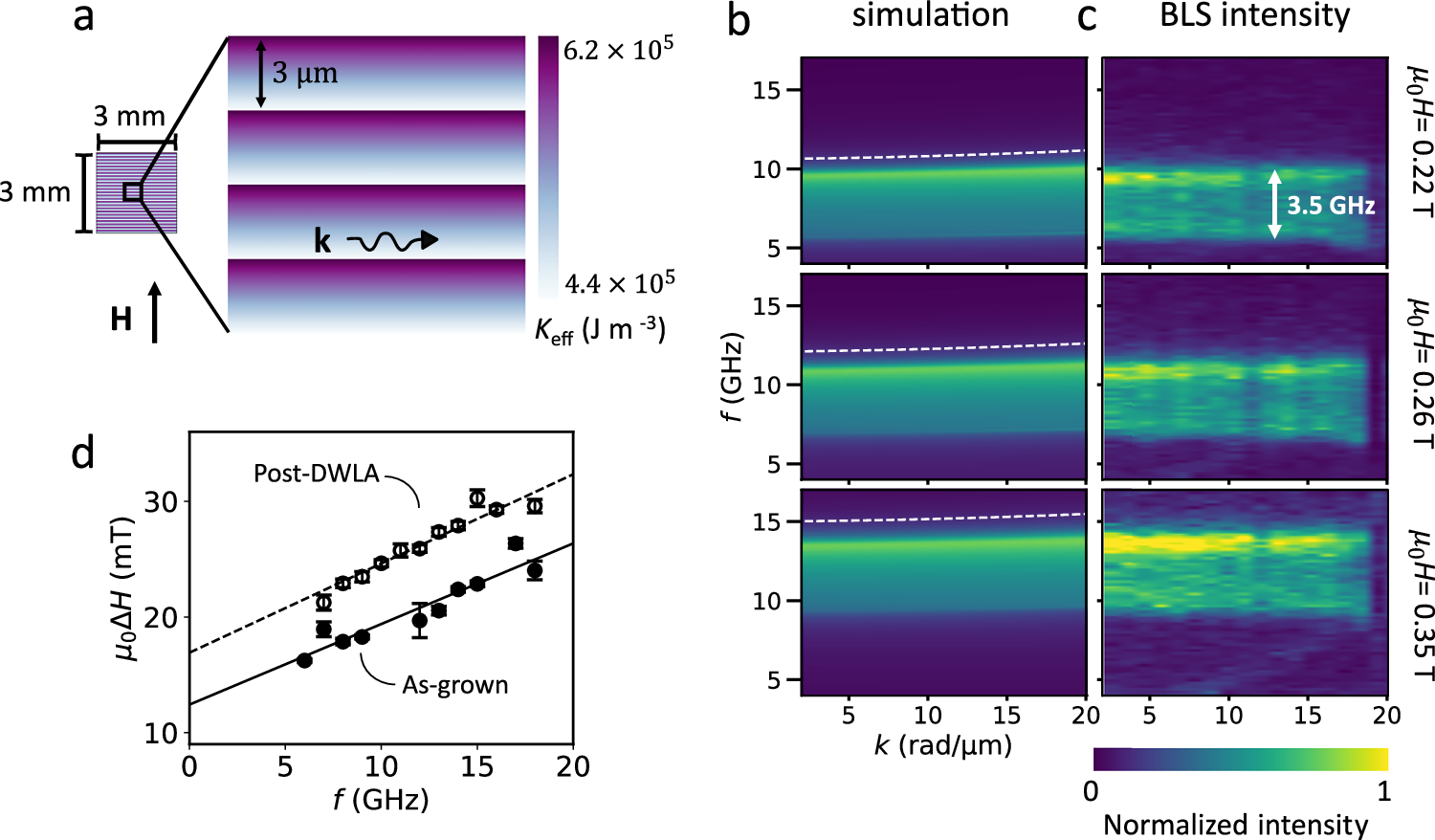

From: Two-dimensional gradients in magnetic properties created with direct-write laser annealing
