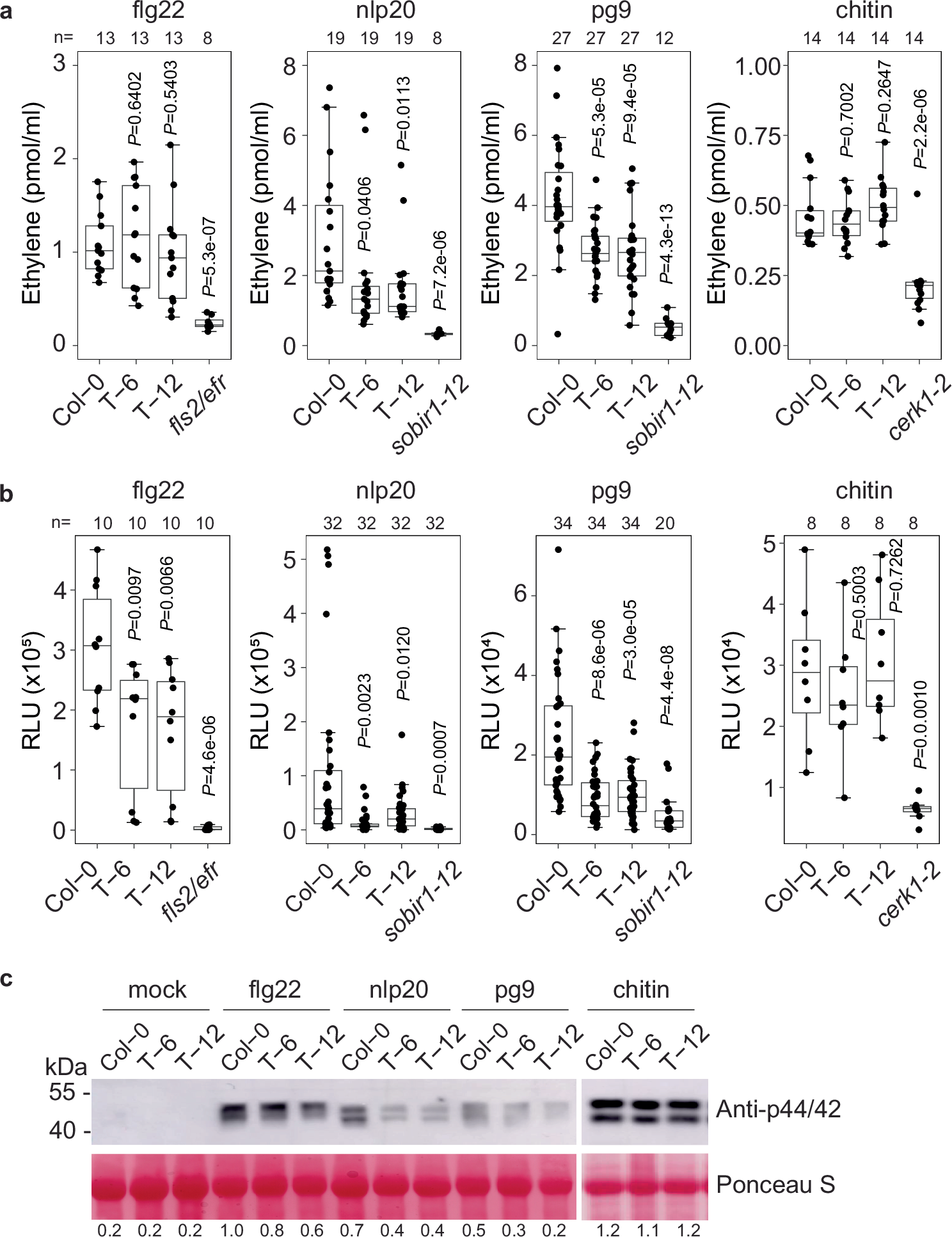

Fig. 4: Immune responses of transgenic Arabidopsis expressing SCP8 upon pattern treatments.
From: A fungal pathogen manipulates phytocytokine signaling for plant infection
a Ethylene production. b ROS burst. For a and b, data points are indicated as black dots from two-four independent experiments and plotted as box plots (center line, median; bounds of box, the first and the third quartiles; whiskers, 1.5 x IQR; error bar, minima and maxima). Statistical differences between Col-0 and the indicated mutants were analysed using a two-sided Student’s ttest. c MAPK activation in Arabidopsis Col-0, T-6, and T-12 plants following treatment with flg22, nlp20, pg9 and chitin (all patterns applied at 1 µM concentrations). Protein levels were approximated by measuring band intensities from western blots using ImageJ software. Band intensities were normalized to those of the corresponding loading controls. The protein level in flg22-treated Col-0 samples was set to 1.0 for normalization.
