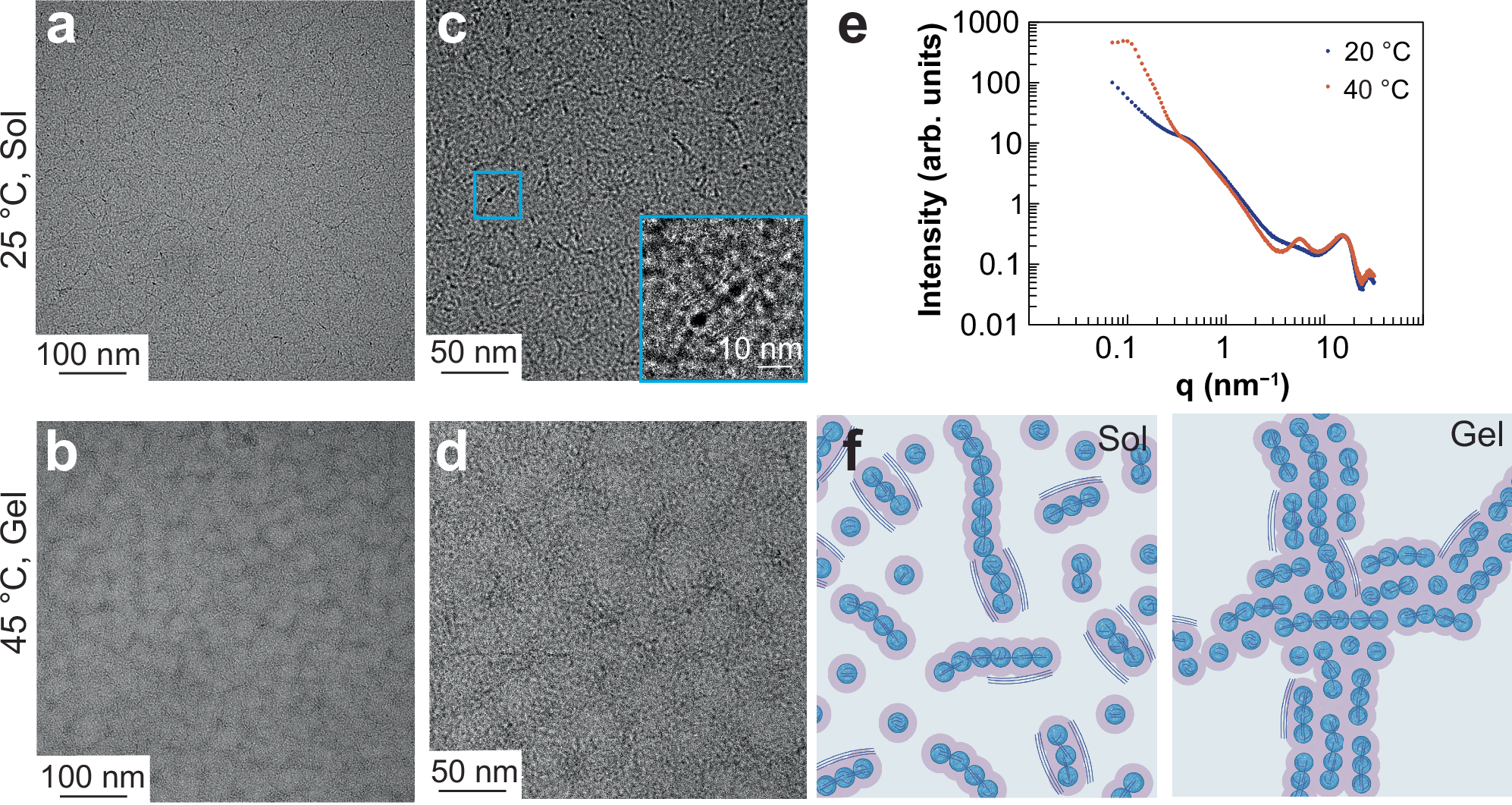

Fig. 3: Characterizing the microstructure and gelation mechanism of the PEDOT:PSS96-b-PNIPAM440 TR-CP (PSS:PEDOT molar ratio = 3.5:1).
From: Thermo-reversible gelation of self-assembled conducting polymer colloids
