Fig. 5: Scalable fabrication of CNTs-PVDF membrane.

From: Advanced electrically conductive carbon nanotubes-PVDF composite membranes with electro-promoted water treatment performance

Fig. 5: Scalable fabrication of CNTs-PVDF membrane.

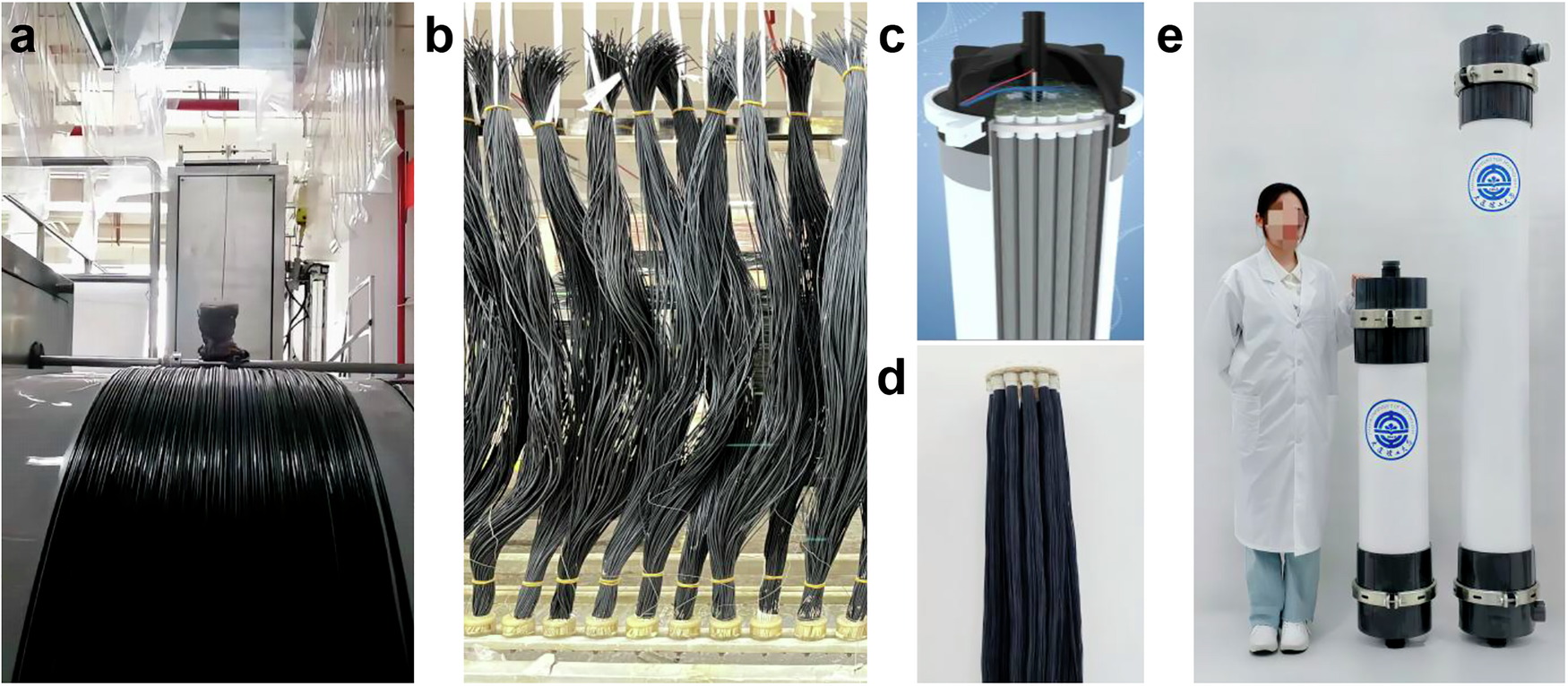

a The real-time fabricated CNTs-PVDF membrane in the production line. b CNTs-PVDF membrane bundles for the assembly of membrane modules. c, d Schematic diagram and a digital image of a commercial scale membrane module based on CNTs-PVDF. Containing membrane bundles, titanium mesh counter electrode, and the connecting wires hollow fiber membranes. e Digital images of the circular membrane modules. The typical sizes of the modules are Φ × L = 238 mm × 1200 mm and Φ × L = 238 mm × 2000 mm, respectively.
