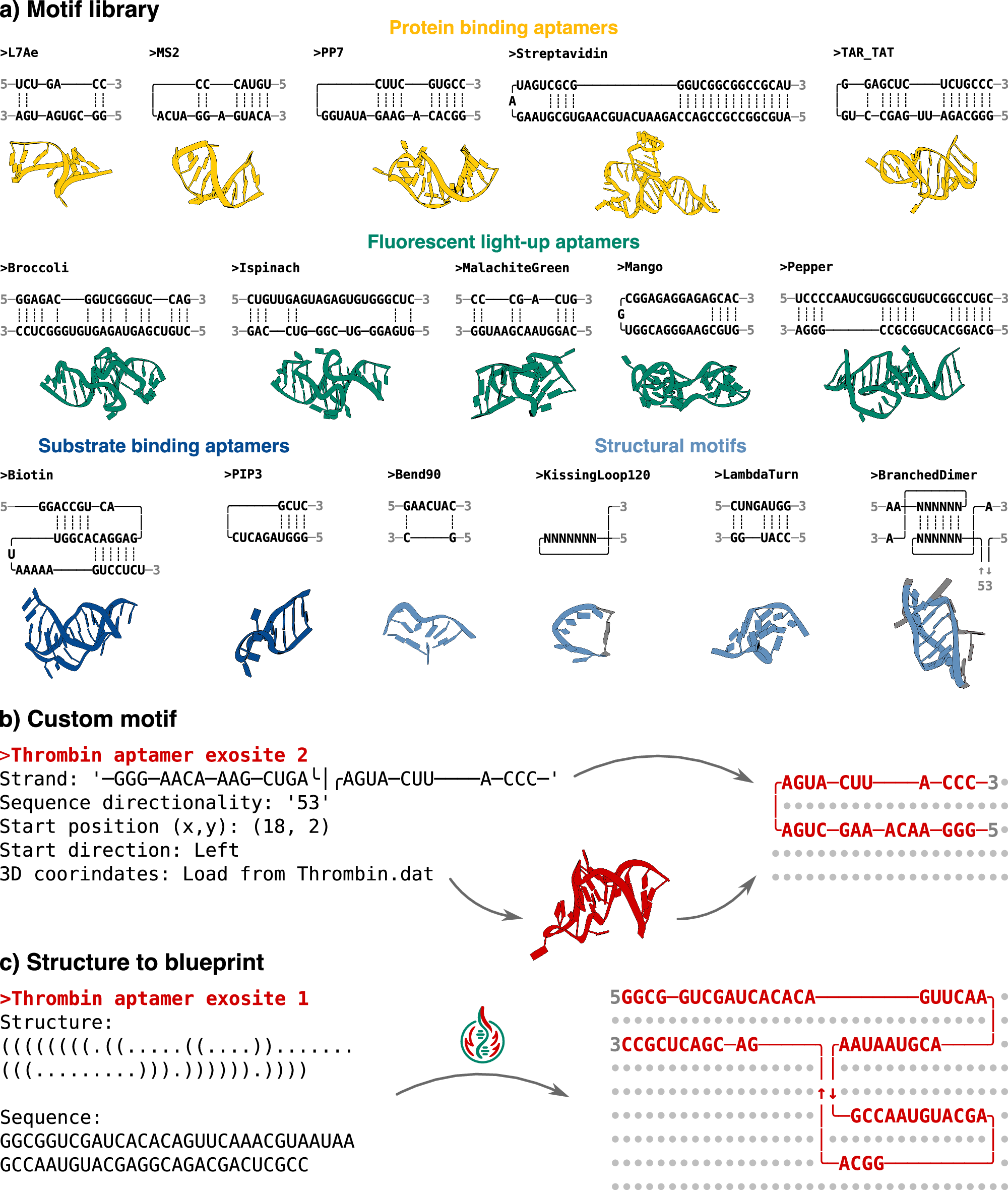

Fig. 4: The expandable pyFuRNAce motif library.
From: PyFuRNAce: an integrated design engine for RNA origami
a The current pyFuRNAce motif library (excluding core motifs), with blueprints and 3D structures. The library includes protein-binding aptamers (yellow), fluorescence light-up aptamers (green), substrate-binding aptamers (blue), and structural motifs (light blue). b Custom motif definition: A motif is composed of strands, each defined by strand characters, start position, start direction, and 3D coordinates. The corresponding blueprint is shown on the right. c PyFuRNAce enables the conversion of secondary structure in dot-bracket notation (left) into a corresponding blueprint motif (right), along with an associated sequence.
