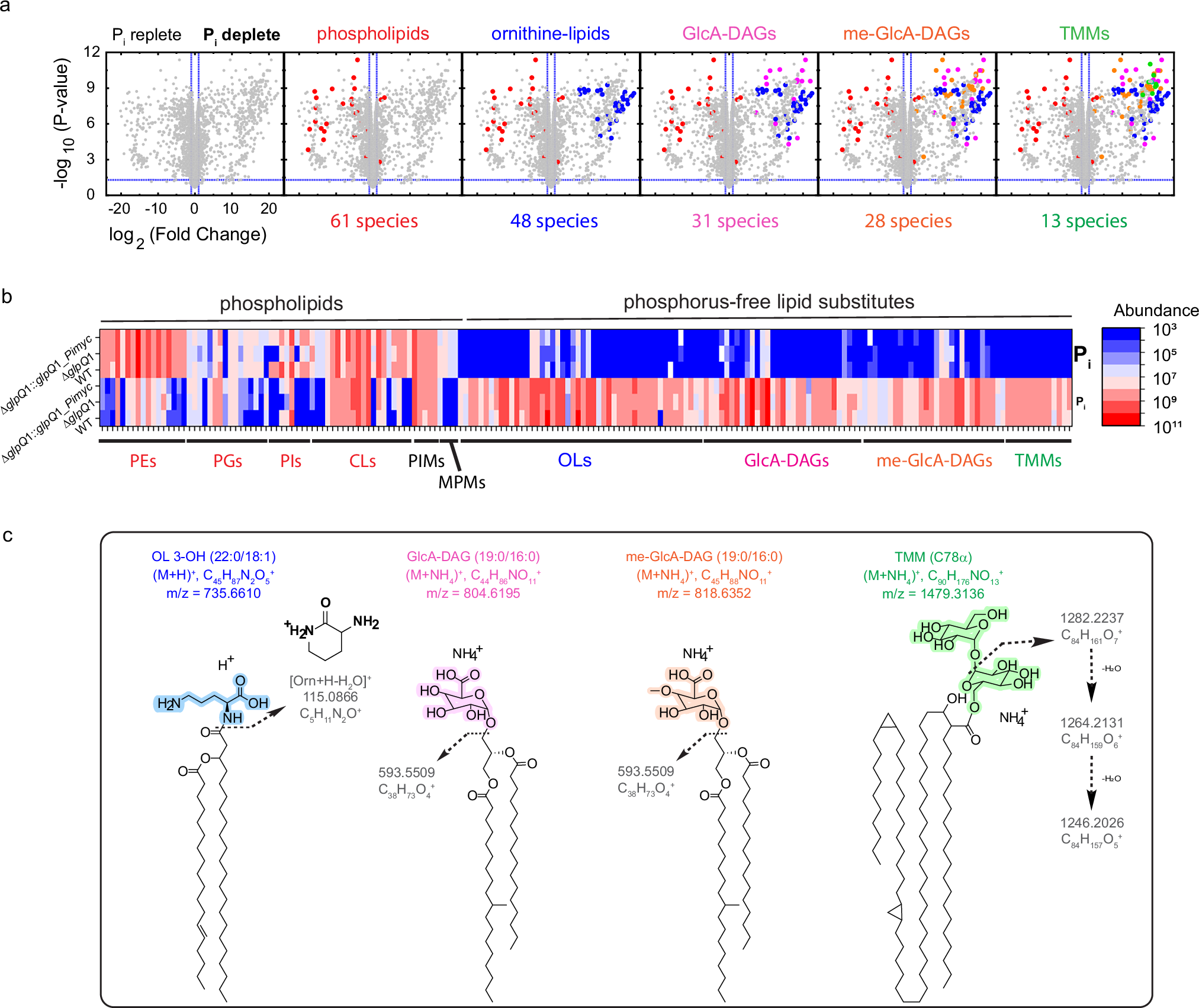

Fig. 3: Remodelling of the Mtb lipidome in response to starvation.

a Volcano plot showing the lipidome of Mtb, plotted as the fold change in the mean abundance of each detected lipid in the WT grown in Pi-free media/ mean abundance in the WT grown in Pi-replete (25 mM) media, positive ion-mode data. Thus, features to the left of the midline are lipids enriched in replete Pi and features to the right are lipids enriched in zero Pi. Left to right volcanoes stepwise annotate the major classes of altered lipids. Total features plotted = 2963. Means are calculated across 6 replicate cultures (Pi-free culture) and 5 replicates cultures (Pi-replete culture). A CV < 30 in the PBQCs statistical filter has been applied. P values are from two-sided Student’s t-test, and are adjusted for multiple comparisons setting a false discovery rate to 5%. Representative of 2 independent experiments. b Heatmap of the abundance of the 181 lipid species comprising the phospholipids and phosphorus-free lipids detected in positive ion-mode, as well as 4 MPMs and 5 PIMs detected in negative ion-mode. Top 3 rows depict the mean abundance of each lipid (area under the curve) in each strain grown in Pi-replete media (25 mM), bottom 3 rows each strain grown in Pi-free media. Lipid species are organised on the x-axis into their classes. Means are calculated across replicate cultures per strain. Representative of two independent experiments. c Chemical structures for an example of each of the four classes of phosphorus-free replacement lipids. In each example, the numbers in backets (W:X/Y:Z) indicate W carbon length and X number of unsaturations in the one alkyl chain, and Y and Z the same features respectively in the second alkyl chain. For TMM C78α refers to the 78 carbons in the mycolate chain and its alpha configuration. The polar headgroups are coloured, and arrows indicate the major fragmentation lines demonstrated in the HCD data enabling their annotation. Source data are provided as a Source Data file.
