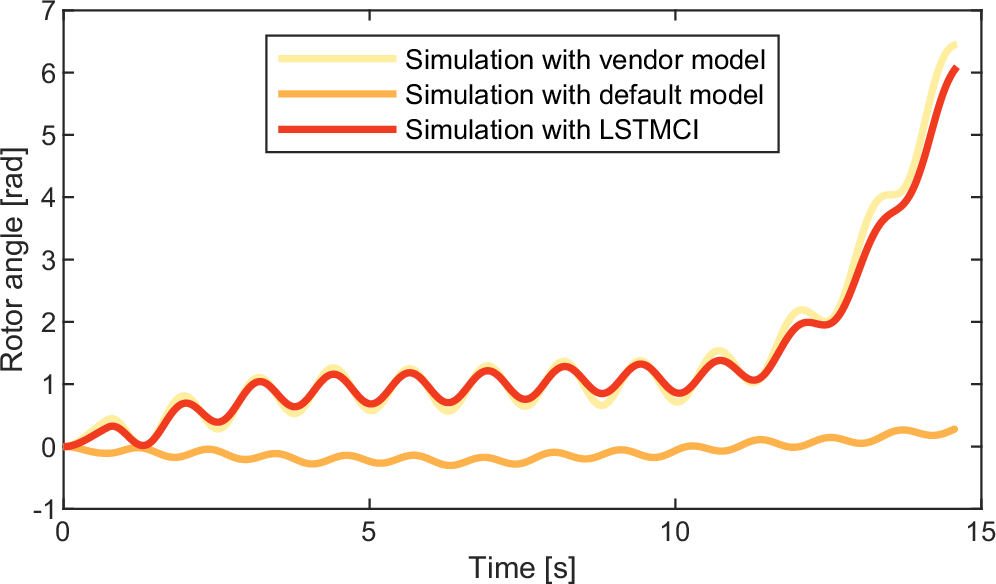

Fig. 6: Comparison of rotor angle curve observed at the generator G2 relative to G1.
From: Data-driven dynamic modeling for inverter-based resources using neural networks
For location of the G1 and G2 see Fig. 2. The simulation with the vendor models is shown as a reference, where closer agreement indicates better accuracy. Source data are provided as a Source Data file.
