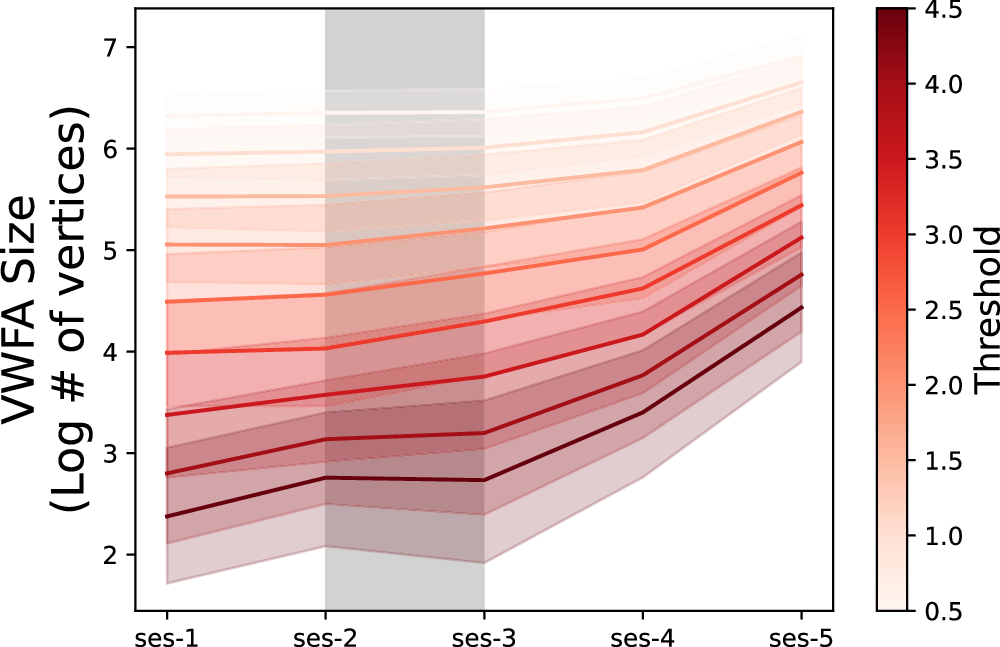

Fig. 4: Visual Word Form Area Shows Growth Across Thresholds.
From: The balance between stability and plasticity of the visual word form area in dyslexia
Change in size of VWFA in the intervention participants (n = 44). For the purposes of this analysis, Visual Word Form Area (VWFA) was defined as any vertex in the Ventral Occipitotemporal Cortex that had a t value >= the threshold value in a contrast map comparing activation to text > activation to all other categories. Thresholds were tested in increments of 0.5 ranging from 0.5 to 4.5. Intervention period is visualized with a grey box between sessions 2 and 3. Source data are provided in a public data repository.
