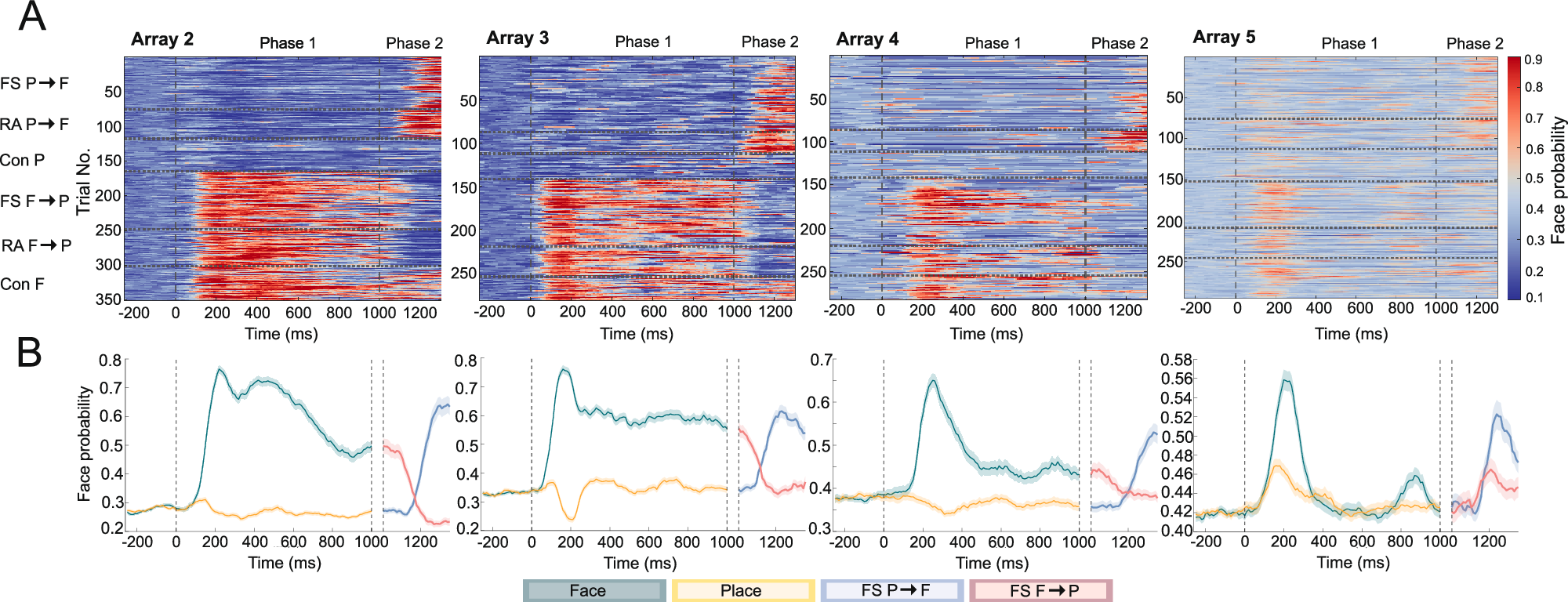

Fig. 5: Flash suppression: linear decoder.

A Bin-by-bin classification per trial for face and place using a logistic regression with LOO cross-validation. Horizontal dotted lines separate conditions. During the first 1000 ms, a place was presented in the first 3 conditions and a face in the last 3 conditions. FS = Flash Suppression, RA = Real Alternation, and Con = Continuation of the initial stimulus. Vertical dotted lines separate fixation, phase 1, and phase 2 of the experiment. Colors indicate the probability that a face is presented during a certain bin. B Decoder face probability for both flash suppression paradigms (FS F→P and FS P→F). Lines and shading represent mean ± standard error from all decoders per paradigm (\({N}_{{decoders}}\) = number of trials per paradigm). During phase 1, the green and yellow plots are the average prediction for a monocularly presented face and place, respectively. During phase 2, blue and red indicates face and place perception during flash suppression, respectively. Double-dotted vertical lines separate phase 1 from phase 2. For (A and B), x-axis represents the middle of the 100 ms bin used for decoding.
