Fig. 3: Nucleotide binding in the F1-ATPase.

From: Distinct structural features of Pseudomonas aeruginosa ATP synthase revealed by cryo-electron microscopy

Fig. 3: Nucleotide binding in the F1-ATPase.

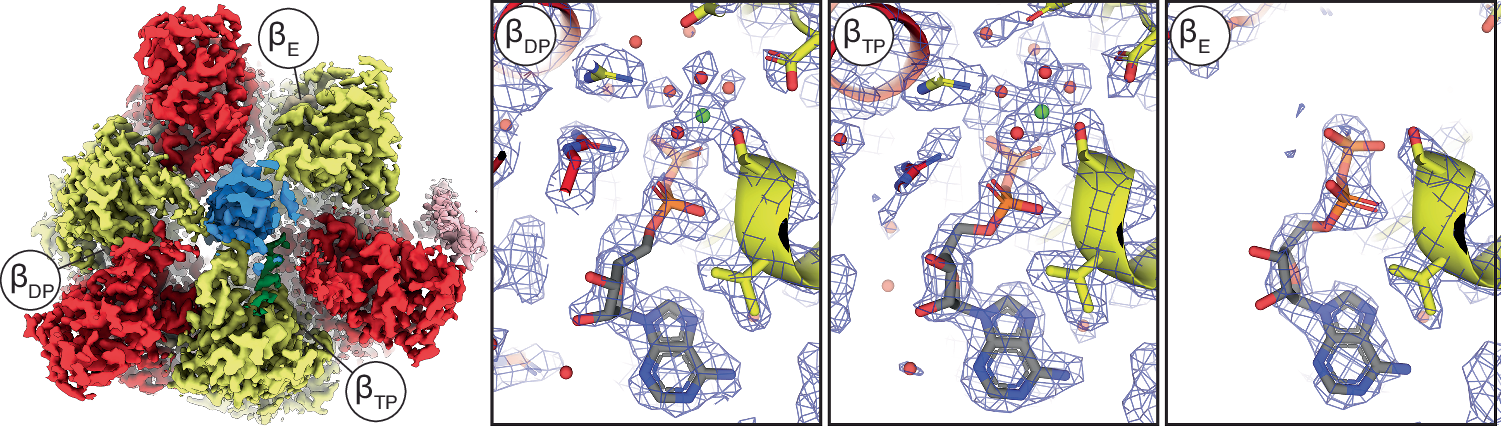

Cryo-EM maps of the F1-ATPase contain sufficiently high detail to identify nucleotides and associated water molecules. The F1-ATPase map from State 1 (viewed from the membrane) and close-up views of the β subunit nucleotide binding sites (maps shown at 7.5 σ). β subunits labeled as βE, βDP, and βTP, as in Abrahams et al. 199413.
