Fig. 4: Effects of the rate of protected area gain on ecological quality.
From: Current protected areas provide limited benefits for European river biodiversity

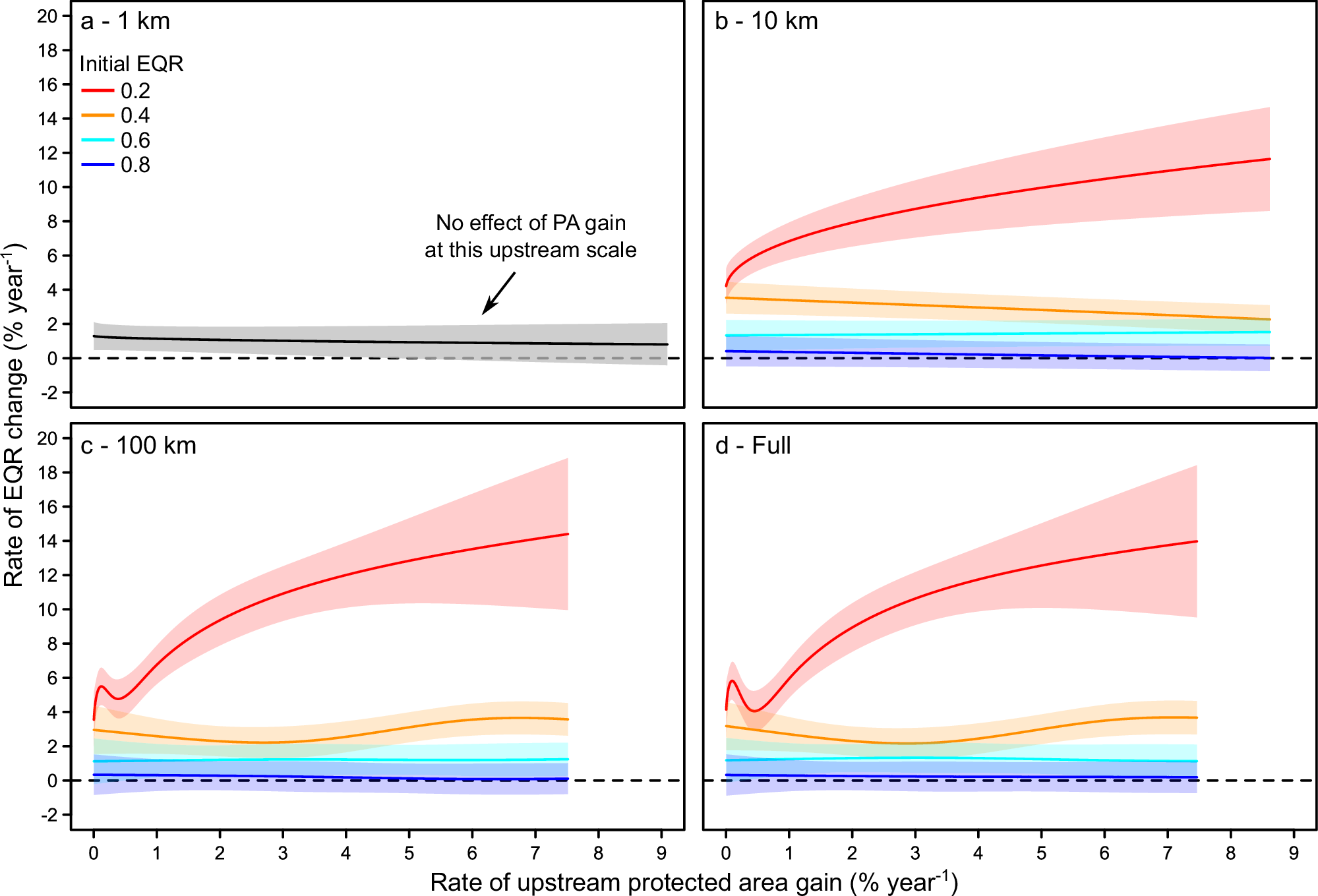

Relationship between gain of upstream protected area (PA) cover and the rate of temporal change in ecological quality (represented as the Ecological Quality Ratio; EQR) for only sites that gained PA cover at the a 1-km, b 10-km, c 100-km, and d full upstream scales. Lines show the best-fit relationships, with shaded areas as the 95% confidence intervals, based on generalized additive mixed models. Line and shading color illustrate how relationships depend on initial ecological quality using example initial EQRs of 0.2 (red), 0.4 (orange), 0.6 (light blue), and 0.8 (dark blue), which respectively indicate higher to lower human impacts. Black lines and grey shading indicate non-significant (P > 0.05) relationships based on Wald-type tests. Best-fit relationships are shown up to the maximum rate of PA gain observed at each upstream scale.
