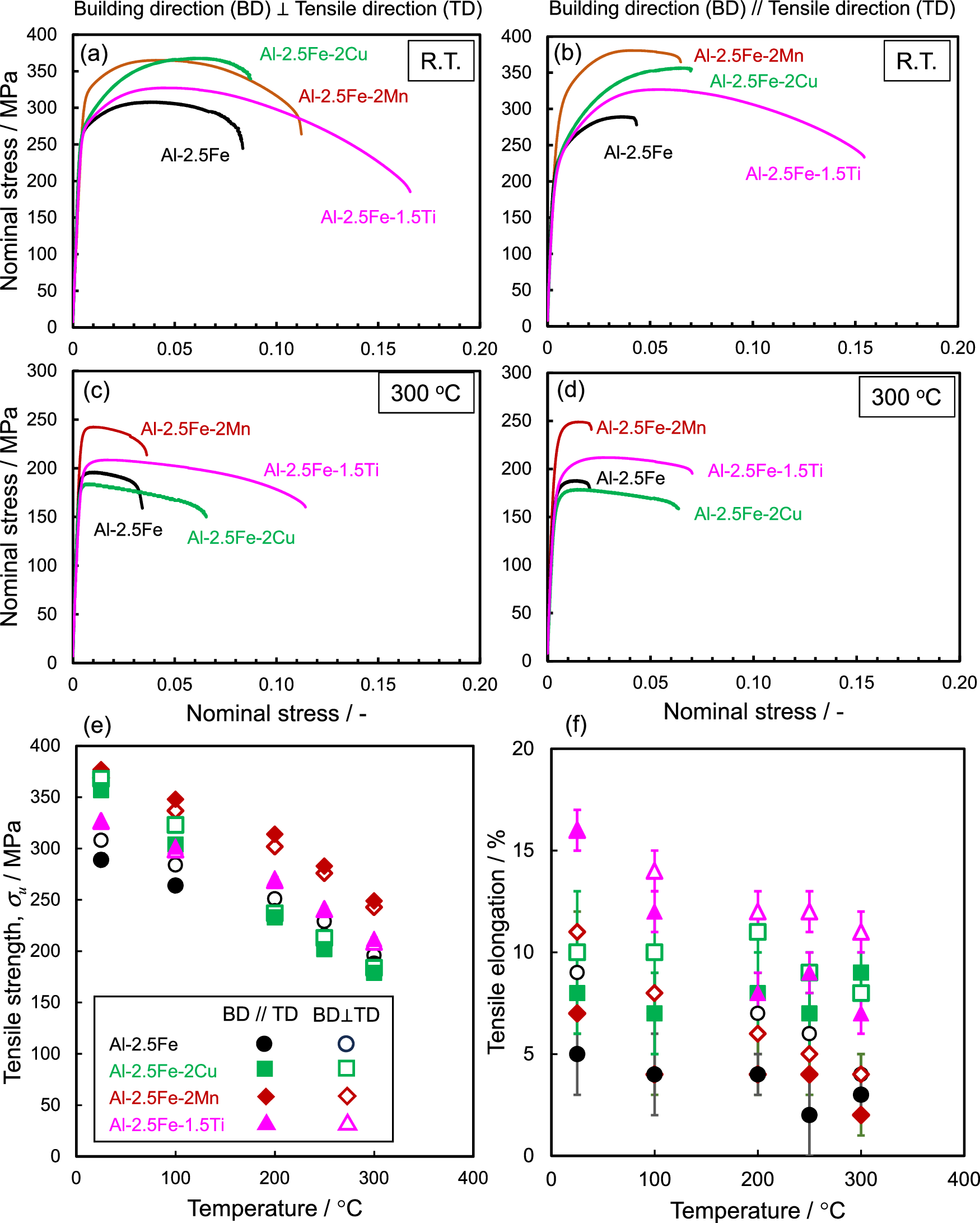

Fig. 4: Mechanical properties of Al-Fe-X (X: Cu, Mn, and Ti) ternary alloys additive manufactured by PBF-LB.
From: Design of high-performance sustainable aluminum alloy series for laser additive manufacturing
a–d Nominal stress–strain curves of the specimens tensile-deformed perpendicular or parallel to the building direction (TD // BD or TD⊥BD) at room temperature (approximately 20 °C) and 300 °C. e, f Changes in tensile strength and ductility as functions of test temperature (Error bars show the maximum and minimum values of the mechanical data measured three times). The source data are provided as a Source Data file.
