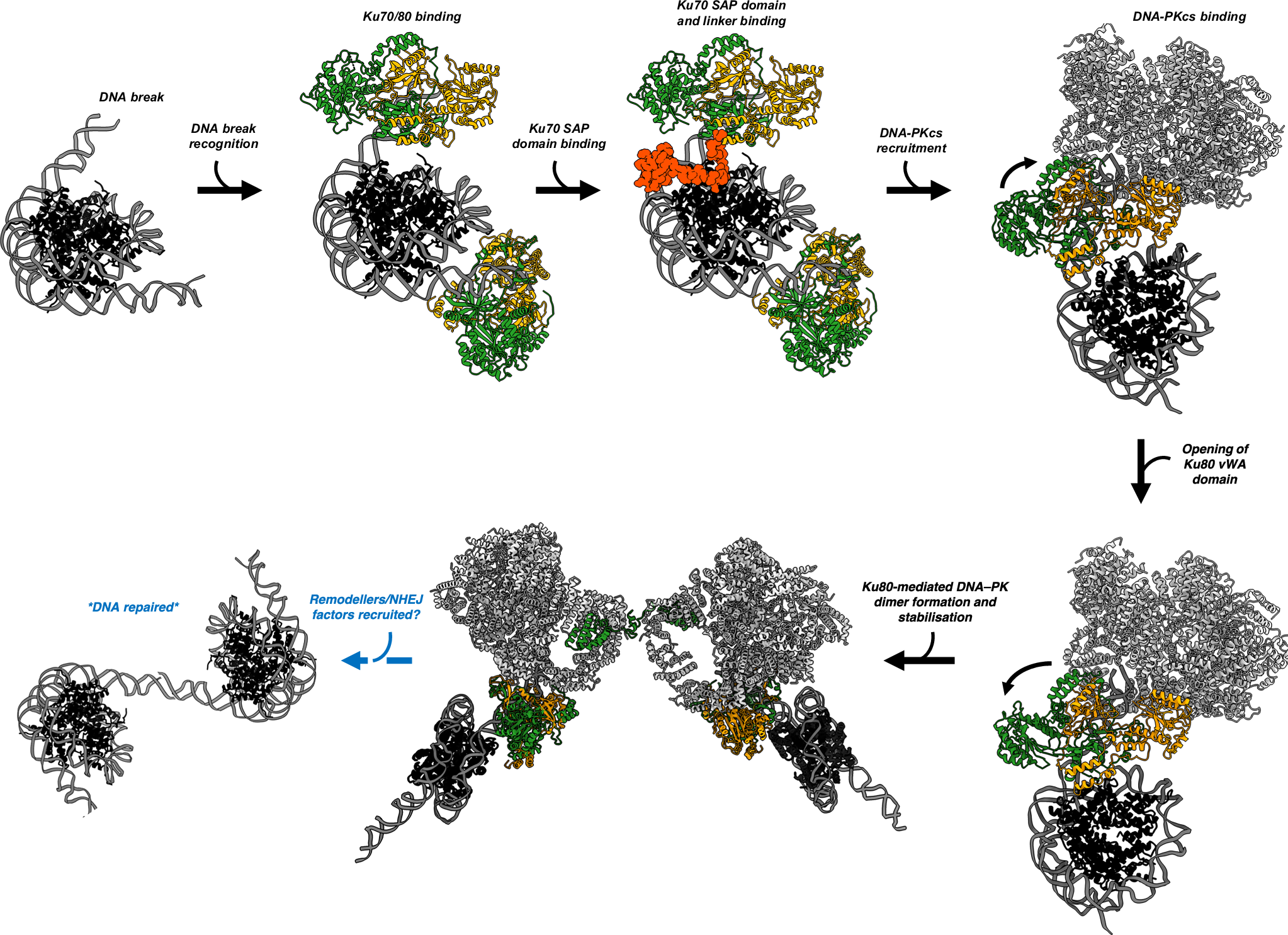

Fig. 5: Model of NHEJ DNA repair in the context of nucleosomes.
From: Cryo-EM structures of NHEJ assemblies with nucleosomes
Histones are coloured in black, DNA in dim grey, DNA-PKcs in light grey, Ku70 in orange, Ku80 in green and the Ku70 C-terminal linker and SAP domain in red.
