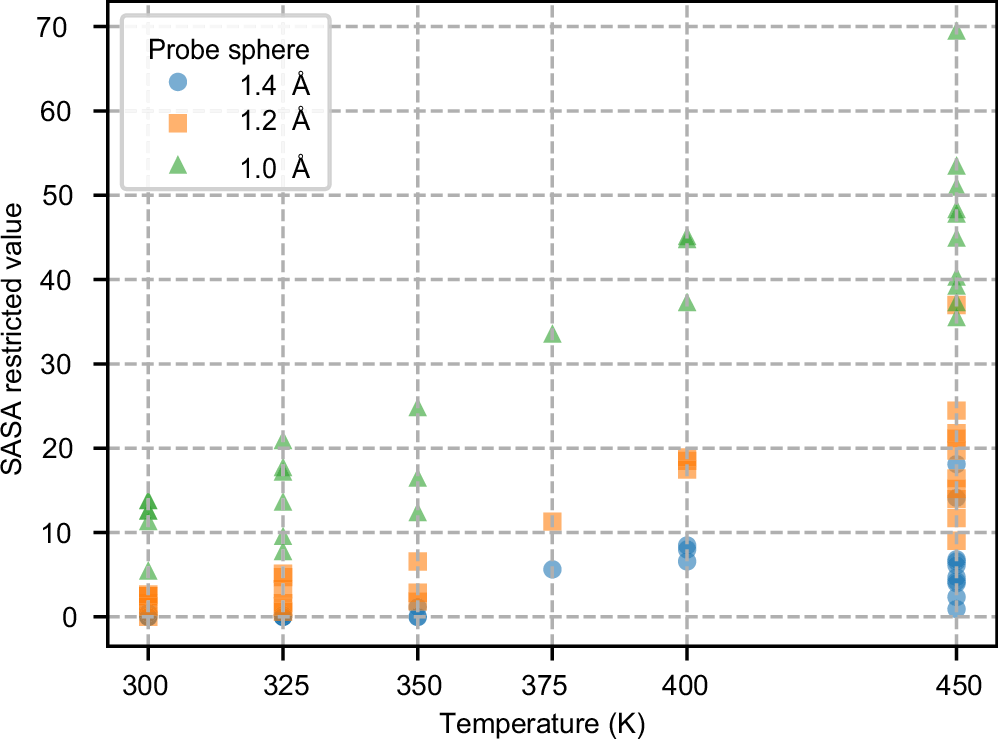

Fig. 5: Temperature-dependent SASA analysis for Au144(SCH3)60 nanocluster with various probe radii.
From: Thermal dynamics and coalescence of Au144(SR)60 clusters from a machine-learned potential
SASA values for selected structures obtained from the first replica of MD simulations conducted at temperatures ranging from 300 K (I) to 450 K (I). The calculations were performed using probe spheres of varying radii: 1.4 Å (blue circles), 1.2 Å (orange squares), and 1.0 Å (green triangles). Source data are provided as a Source Data file.
