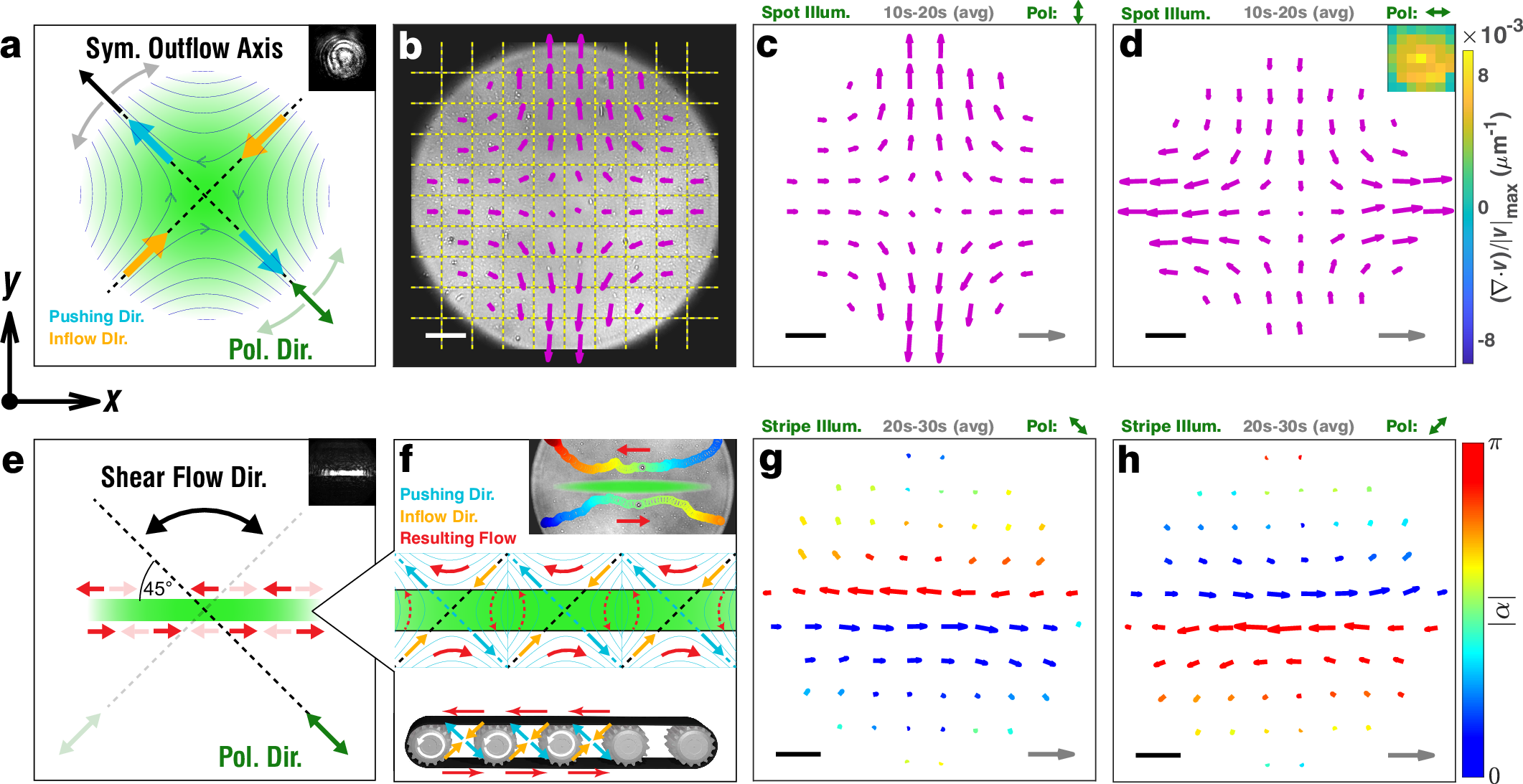

Fig. 4: Polarization-controlled rapid flows.

a) Scheme of adjustable polarization direction whose rotation will lead to a rotation of the entire flow-field at the water–air interface, including the symmetric outflow axis. Blue arrows: deformation/pushing direction. Orange arrows: inflow. b Microscope snapshot of Supplementary Movie 10, showing the cutting of the field of view into discrete tiles (black/yellow lines), with one computed flow-field vector (magenta) per tile (and time interval). Scale bar (white): 20 μm. c, d Flowfields associated to the time interval 10–20 s after illumination onset for y- and x-oriented linear polarization, respectively. Scale bar (black): 20 μm. Velocity reference arrow (gray): 20 μm/s. Inset: Relative divergence of the flowfield averaged over six consecutive flow fields. e Scheme of switchable shear flow obtained by tilting the polarization to 45 degrees with respect to a stripe-shaped illumination. f Explanatory inset showing the origin of a pure shear flow for negligible local divergence (inflow = outflow). Blue arrows: pushing outflow. Orange arrows: compensating inflow. Red arrows: resulting (x-oriented) net flows. The conveyor analogy (bottom) shows how the transport movement of such a device may be decomposed into analogous components. The upper inset shows single tracked particles moving across the field in opposite directions along the illumination stripe, from blue to red (full frame in Supplementary Fig. 17). g, h Flowfields computed from data shown in Supplementary Movie 15, demonstrating such shear flows. Arrows are rainbow-colored with respect to the absolute value of their angular deviation from the x-axis. Scale bar (black): 20 μm. Velocity reference arrow (gray): 40 μm/s.
