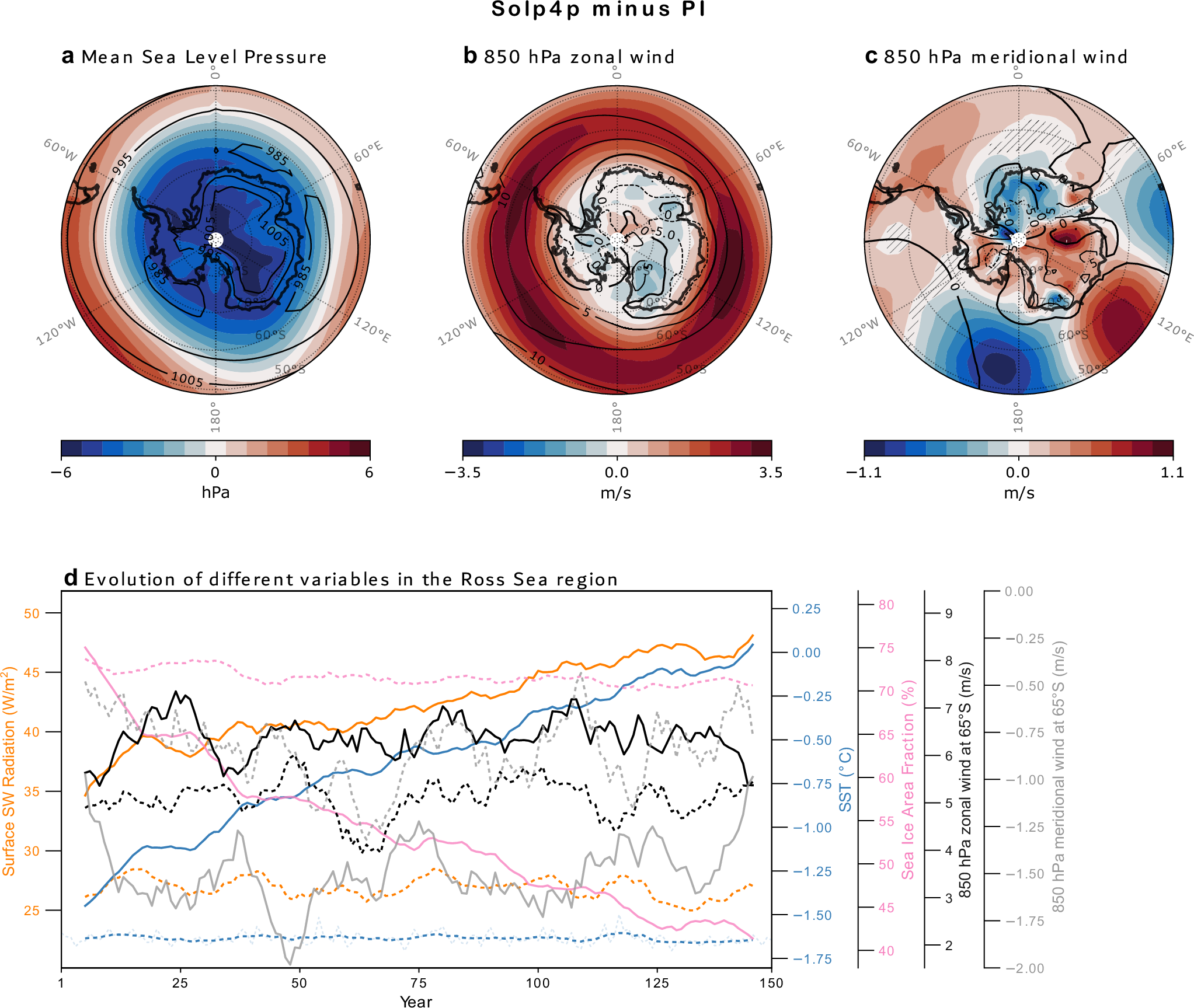

Fig. 9: Multi-model mean, annual mean anomalies (Solp4p minus PI).
From: Late Holocene fast-ice dynamics around the Northern Victoria Land coast, Antarctica
a Sea level pressure, (b) zonal and (c) meridional winds at 850 hPa. Black lines in (a–c) show annual mean results in the PI experiment, while hatching indicates anomalies that are not statistically significant at the 95% confidence level, based on a two-sided t-test. d Yearly evolution of the net surface shortwave radiation, sea surface temperature and sea ice area fraction, averaged over the Ross Sea, defined as the region between 160°E–130°W and 70°S–85°S. 850 hPa zonal and meridional winds at 65°S, averaged over the same longitude range, are shown in green and grey lines. Solid and dotted lines in (d) show 10-year running mean from the Solp4p and PI experiments, respectively.
